Product specifications

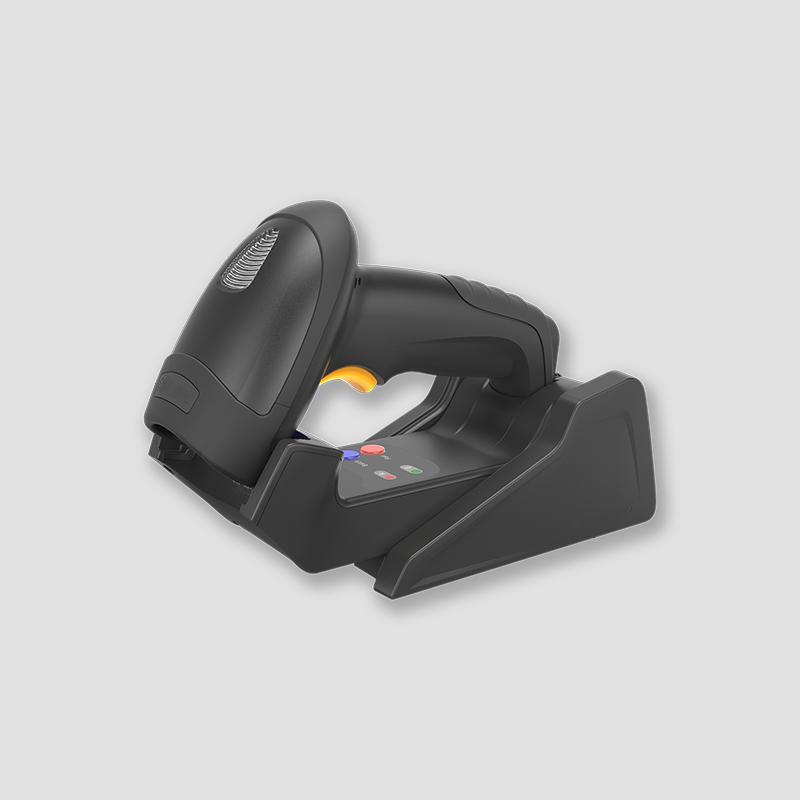

1D 2D Handheld Barcode Scanner
1.Humanized Illumination Designation
The TQS3280 can be set white and red led according to different workplaces. Not only relieving the visual fatigue but also improving working efficiency.
2.Low Consumption and Great Compatibility
The low consumption of HR3280 reduces connection issues and maximizes the compatibility for diverse applications.
3.Outstanding Performance
The TQS3280 is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small and high density ones, with impressive speed and ease.
4.Reliable and Stable Wireless Communication
Adopting the latest Bluetooth which is strong anti-interference and stable to transmit the data.
Specifications
|
Performance
|
Image Sensor |
|
1280×800 (megapixel) CMOS |
| Illumination |
|
White LED & Red LED (622nm-628nm) | |
| Symbologies |
2D 1D |
PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode. EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128. |
|
| Resolution |
|
≥3mil | |
| Typical Depth of Field |
EAN-13 Code 39 PDF 417 Data Matrix QR Code |
50mm-495mm (13mil) 85mm-220mm (5mil) 70mm-215mm (6.7mil) 50mm-220mm (10mil) 20mm-325mm (15mil) |
|
| Scan Angle |
|
Pitch: ±55°, Roll: 360°, Skew: ±55° | |
| Min. Symbol Contrast |
|
25% | |
| Field of View |
|
Horizontal 39°, Vertical 24° | |
| Aiming |
|
Green LED (515nm-535nm) |
|
Wireless
|
Communication Modes |
|
Synchronous, asynchronous and batch mode |
| Radio Technology |
|
Bluetooth 5.0 | |
| Communication Distance |
|
50m/164ft (direct line of sight in open air) | |
| Battery |
|
2200 mAh lithium-ion battery | |
| Expected Charge Time |
|
4 hours (with power adapter) | |
| Expected Battery Life |
|
12 hours of continuous operation (scan once per 6 seconds) | |
| Memory Capacity |
|
≥15000 pieces of Code 128 (20 byte of each Code 128) |
|
Physical
|
Dimensions (L×W×H) |
|
Scanner: 113.5(W)×73.3(D)×159.0(H)mm |
| Weight |
|
Scanner: 217g | |
| Operating Voltage |
|
5VDC±5% | |
| Interfaces |
|
RS-232, USB | |
| Notification |
|
Beep, LED |
|
Environmental
|
Operating Temperature |
|
-20°C to 60°C (-4°F to 140°F) |
| Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) | |
| Humidity |
|
5%~95% (non-condensing) | |
| ESD |
|
±8 KV (air discharge); ±4 KV (contact discharge) | |
| Drop |
|
Scanner: 1.5m/4.9ft Cradle: 1m/3.3ft | |
| Sealing |
|
Scanner: IP42 | |
| Battery Charge Temperature |
|
0°C to 45°C (32°F to 113°F) |
|
Certifications
|
Certificates & Protection |
|
Part15 Class B, CE EMC Class B. RoHS |
