Topqrscan is China Photo ID Code Scanner Supplier and ID Code Scanner Manufacturer,it supports support to automatically detects and reads the ID documents when we put the documents on its window.
With special design, it's suitable for both desktop/ on-counter use and kiosk embedded use.
It is outstanding for:
1.High speed: around 1 second for color+uv+ir+ocr processing;
2.Driver free: No driver is required, compatible with most of OS
3. No need extra power supply, USB powered directly
Certificate
CE、FCC、RoHS

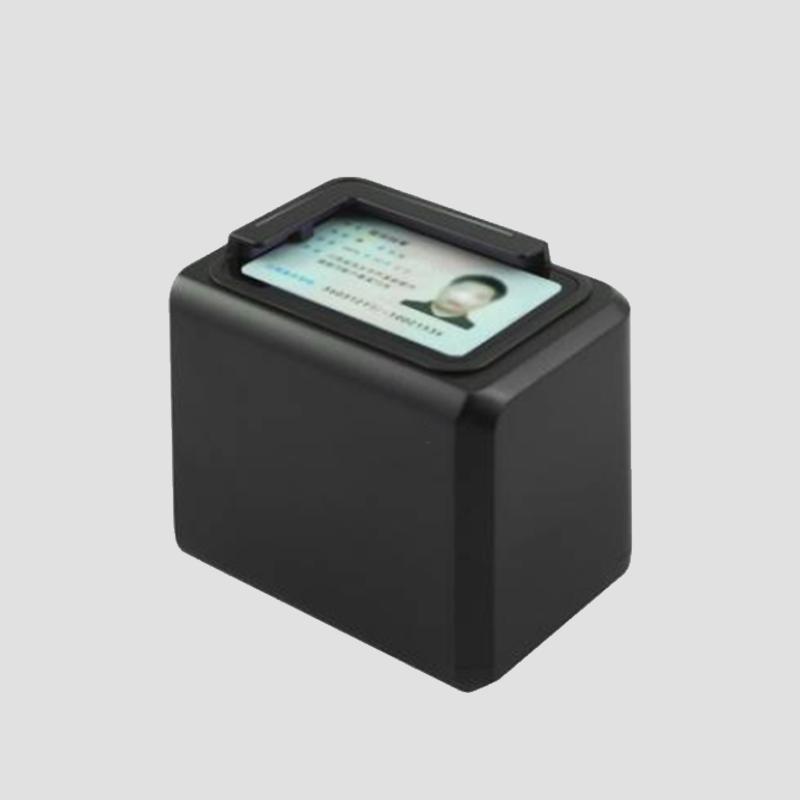

The TQS 200 captures full color image and also ultraviolet (UV) and infrared (IR) images of ID card or driver's license. At the same time, it supports Optical Character Recognition (OCR) for machine-readable zone (MRZ) which is ICAO9303 compliant, and also supports PDF417 bar code reading.
Read OCR-B/ MRZ From ID documents
Take full-page image of ID documents and read 3 lines MRZ (machine readable zone) in ID card, driver’s license.
Color / UV / IR

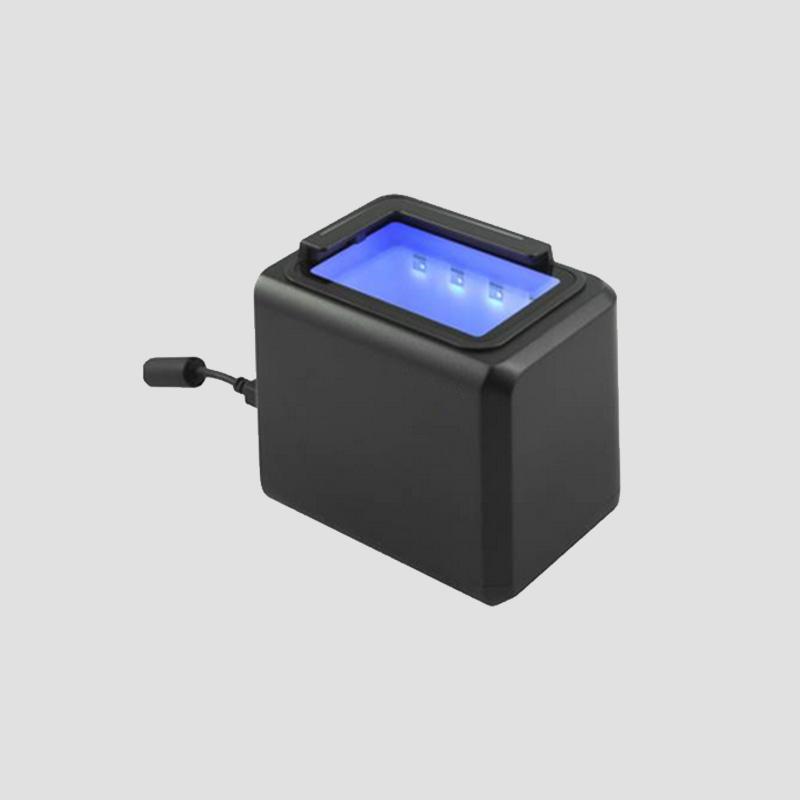

Equipped with 3 Megapixel image sensor, and with three types of illumination which enable UV, Color, IR three types of image capture
High speed
Around one second for three types of image + OCR processing
No driver is required
No driver is required, compatible with most of OS
Automatic Reading
The TQS 200 support to automatically detects and reads the ID documents when we put the documents on its window
Suitable for both Desktop & Embedded use
Its design suitable for both on-counter and self- service terminals embedded use
USB Powered directly
No need extra power supply
No moving parts
Durable design and Reliable, no moving parts
Read Big Size PDF417 From ID Card
Readable those big sizes and high-density PDF417/ QR coded from ID card/driver’s license, e.g.: IDs of El Salvador, Costa Rica, Colombia, Paraguay, Vietnam, Nicaragua, Panamá, Egypt, South Africa, México...
|
Function |
Usage |
Specification |
|
Standard OCR reader 1D/2D bar code reader |
• ID card • Driver license |
• ICAO9303 td1, 3 line MRZ • 2D:PDF417,GM,QR,DM • 1D:Code39,Code128,Codabar,EAN-EAN-13,ITF |
|
Light Source |
• White • UV • IR |
• Color Image • Ultraviolet Image • Infrared Image |
|
Scan speed |
• Color+ IR • Color+ IR+UV |
• Less than 0.7s • Less than 1s *Would be a little different with different computer. |
|
Scan Mode |
• Software trigger • Auto mode |
• By scan button in software interface • Automatic card placement detection and read; |
|
Resolution |
• 3M Camera |
• 460 DPI |
|
Power Supply |
USB Supply |
• USB, no external power needed |
|
Communications and host |
•Communication • Host • SDK |
• USB 2.0 high speed • No driver is required, compatible with most of OS: Windows, Linux, Android, Mac; But SDK is based on Windows only currently. • Free SDK/ license included, Supports to pick up name, id number from MRZ data, and decode bar codes |
|
Mechanical/ Electric |
• Dimensions • Weight • Notification • Window |
• 13.4(W)×9.4(D)×11.4(H)/cm • 300g • Beep, LED indicator • Anti-scratch glass |
