Topqrscan is China WiFi Barcode Scanner Supplier and NFC Barcode Reader Factory,Product can read 1D and 2D QR bar code, but optionally, it can also read the NFC card, this makes it as a two-in-one terminal.
Specification
✔️1D&2D barcode (QR,DM etc)
✔️Capable to read both Barcode & NFC ✹
✔️ Simple desktop type, easy to use ✹
✔️ Automatic reading
Connection
TTL-232 ✹
USB-HID ✹
RS232 ✹
Wi-Fi ✹
Certificate
CE、RoHS
WIFI Embedded NFC & 1D 2D QR Barcode Reader
Multiple installation methods for embedded use
Fast reading of QR code from mobile APP
Windows, Linux, Android, Arduino, Mac, Raspberry PI
Application: Access control, Turnstiles, Self-service kiosks...
Presently, more and more access control system begins to combine bar code reading and NFC reading together. What’s more, wireless data transfer becomes a trend for access control. The TQS200 serial aims to this kind of application and the trend, it combines NFC reader & 2D QR Barcode Scanner together.
The TQS200 can read 1D and 2D QR bar code, but optionally, it can also read the NFC card, this makes it as a two-in-one terminal.
Except for USB-HID, TTL interface, RS232 interface, the RTX200 also supports Wi-Fi communication.
Three models of appearance to meet different usage scenarios and embedding methods

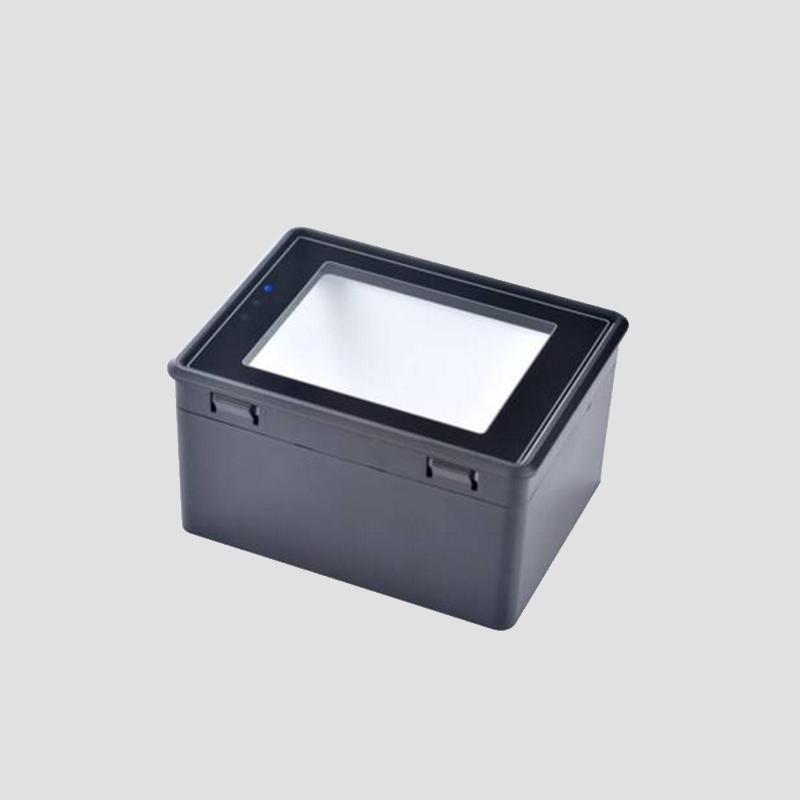

TQS200A: uses a quick installation buckle on both sides, no screws required, easy to be installed.

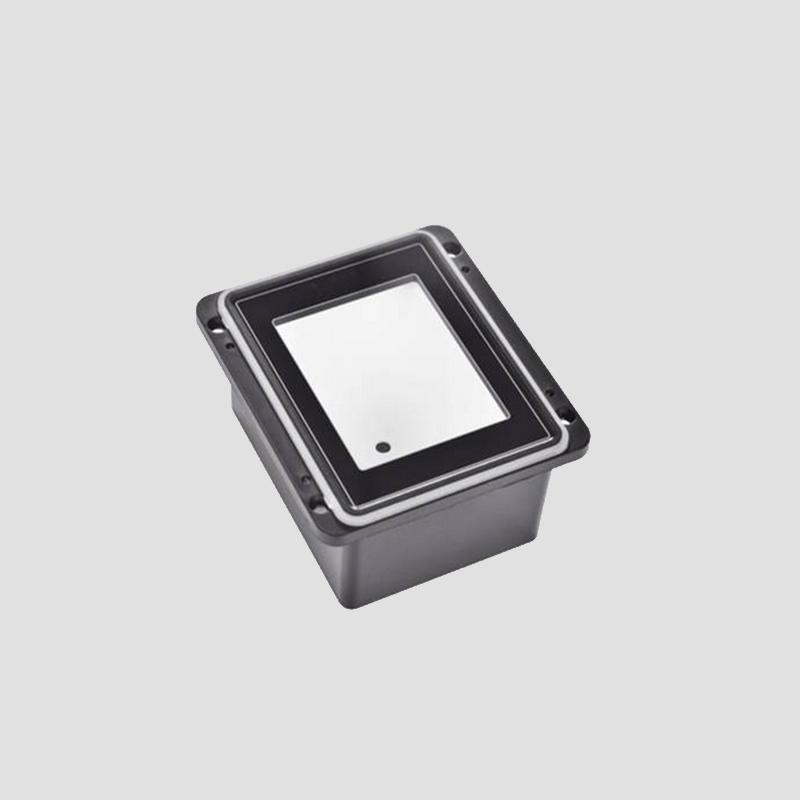

TQS200B: tighten the nut from the back through the hole inside diameter, or crew the column directly through the hole to fix the scanner.
TQS200C: simple desktop type with bracket, easy to use.

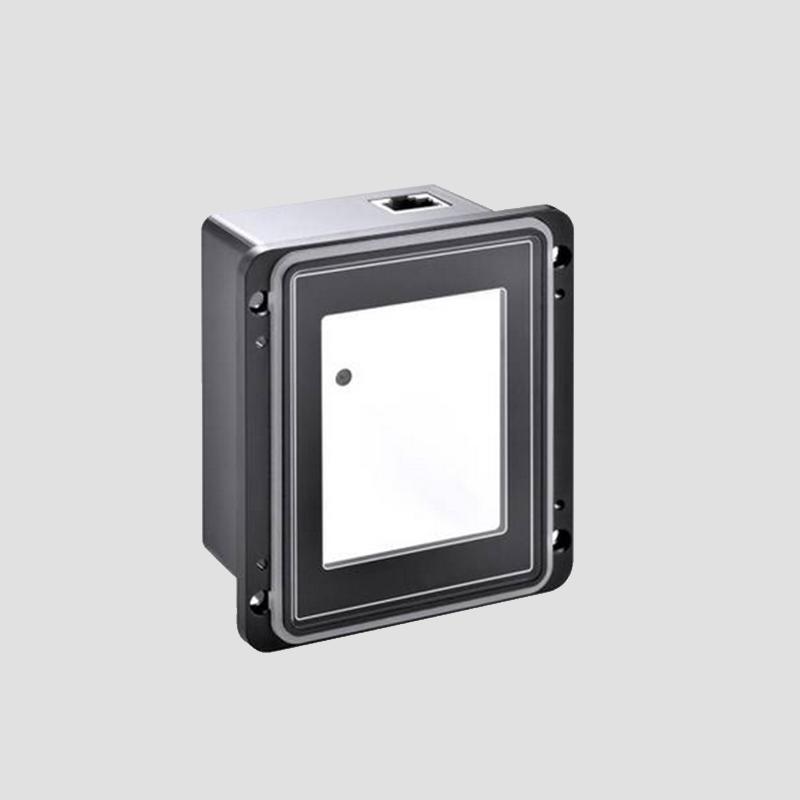

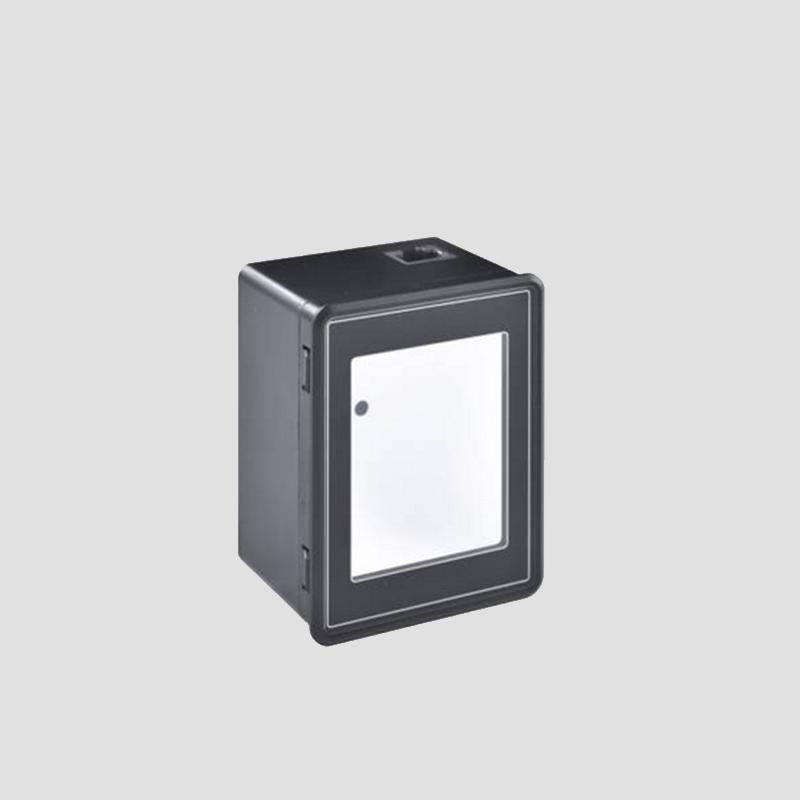

TQS200A External Embedded Version
|
Performance |
Image Sensor |
640 * 480 CMOS |
|
|
Reading distance |
0-10cm |
||
|
Reading speed |
70ms per scan |
||
|
Scanning window |
59*46mm |
||
|
Symbologies |
2D |
QR Code,PDF417,AZTEC etc. |
|
|
1D |
CODE 128, ISBN 10, ISBN 13, CODE 39, CODE 93, EAN 13, ITF,UPC-A, UPC-E, EAN 8 etc. |
||
|
Scan Mode |
Sense mode: detect and read automatically |
||
|
Scan Angle |
Roll: 360°, Pitch: ±40°, Skew:±30° |
||
|
Field of View |
Horizontal 77°, Vertical60° |
||
|
Resolution |
≥7mil |
||
|
Min. Symbol Contrast |
25% |
||
|
Mechanical/ Electric |
Interface |
RS232, USB-HID, TTL-232, Wi-Fi |
|
|
Dimensions |
RTX200A: 90mm*70mm*48mm; RTX200B: 95mm*84mm*48mm; RTX200C: 88mm*67mm*48mm; |
||
|
Weight |
140g |
||
|
Notification |
Buzzer, white light |
||
|
Operating Voltage |
5V-15V wide voltage input |
||
|
Current |
0.15A (5V) or 0.05A (15v) |
||
|
NFC |
13.56Mhz ID card |
Only supports reading the physical card number. Mifare_UltraLight, Mifare_One(S50), Mifare_One(S70), Mifare_Pro(X), Mifare_Desire. |
|
|
Environmental |
Operating Temperature |
-20℃ to 70℃ |
|
|
Storage Temperature |
-40℃ to 80℃ |
||
|
Humidity |
0% to 95% (non-condensing) |
||
|
OS |
Windows(xp\7\8\10), linux, Android, Mac |
||
