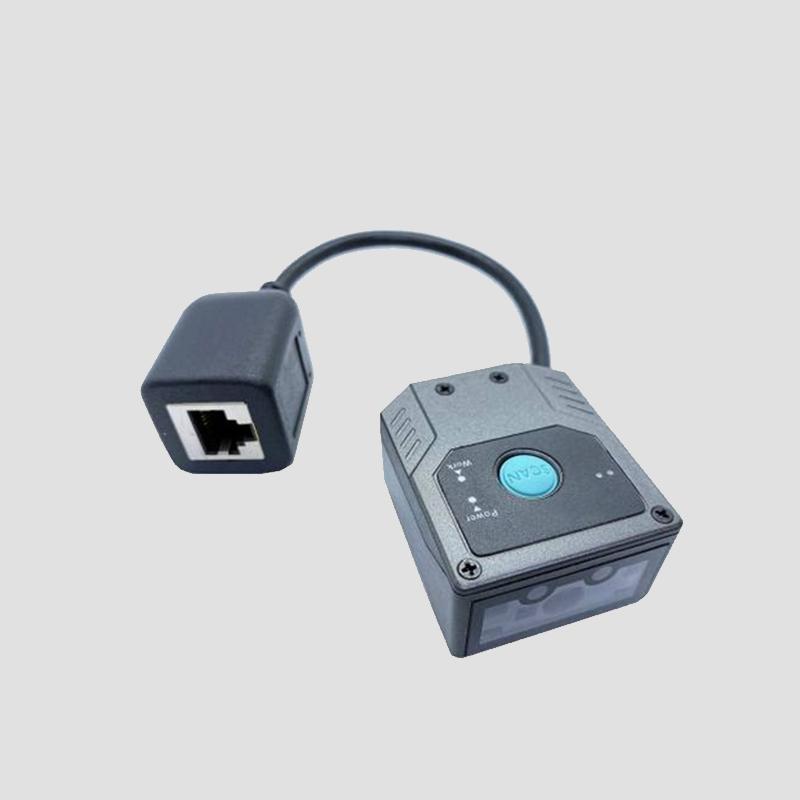

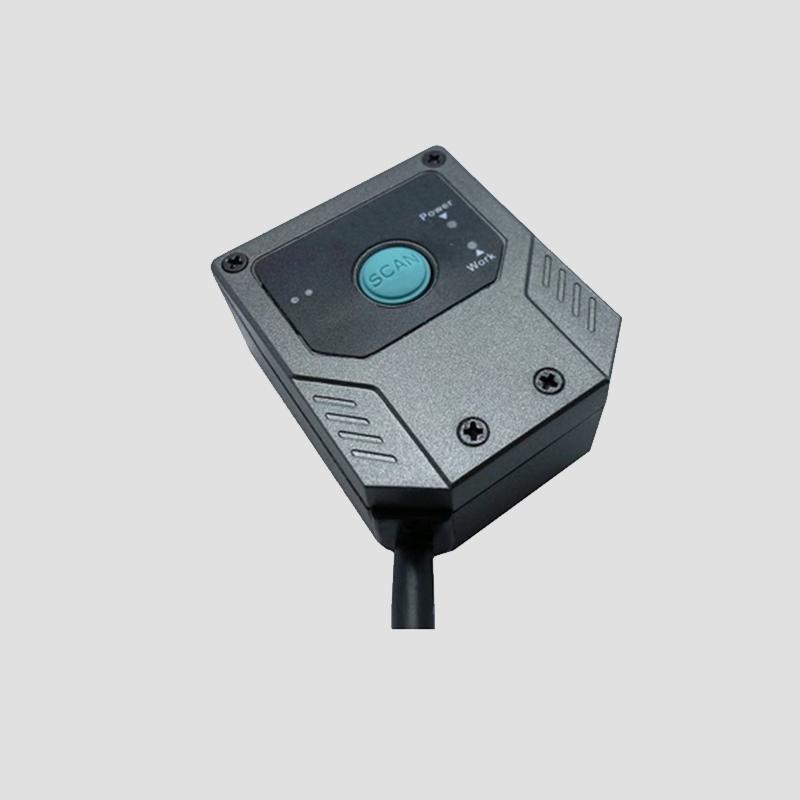

Industrial Level Fixed Mount QR Code Reader TQS234

Industrial Level Fixed Mount QR Code Reader TQS234

Topqrscan is Fixed Mount QR Code Reader Manufacturer and Fixed Mount Barcode Reader Supplier, it can quickly read most types of 1D/2D barcodes on paper/screen.

Specification

✔️1D &2D barcode reading (QR,DM etc)

✔️Automatic reading & Command trigger

✔️Windows, Linux, Android, Raspberry PI

Connection

RS232

USB (HID & COM)

Certificate

CE、FCC、RoHS

Inquiry now

Industrial level 2D barcode scanner

IP54 rated for water and dust resistance

The TQS234 is a full sealed IP54 rated scanner which protects it well from dust, water and moisture.

IR/Light Triggers

The combination of IR sensor and light sensor exhibits an improved sensitivity in activating the scanner to scan barcodes as they are presented, to achieve higher throughput and productivity.

Automatic Exposure Control (AEC)

The sensor in the TQS234 automatically adjusts the supplementary lighting duration based on the light reflected off barcode.

Excellent reading performance

It reads very well all types of barcodes including PDF417, QR code, Data Matrix, AZTEC, CSC,Maxicode, Micro QR, Micro PDF417, common 1D/2D bar codes etc from paper and phone screen.

Highly Visible Laser Aimer

The TQS234 provides a laser-generated crosshair aiming pattern that is clear and bright even in bright sunlight, ensuring first-time accurate aim.

1.5m Drop Resistance

The scanner withstands multiple 1.5m drops to concrete (for six sides, three drops per side).

We provide 3D-Drawing and other related introduction which support your easy and quick integration work with your terminals.

Contact our sales people to get the full documents.

Program The Scanner By Setting Codes

To program/ setup the scanner scanner module, you can just simply do it by setting codes from the User manual we provide. Remember to read the "Enter setup" code when you begin to setup. Please ask our sales people for the full detailed user manual.

Program / Control the barcode scanner by commands

The TQS 234 support to be controled by commands, for example, we can control the scanner's read/illumination... by sending commands to the scanner. We provide introduction to let you know how to do the command control. Ask our people to get full documents.

Specification

Performance
Image Sensor	1280 *800 CMOS
Illumination Aiming	Red LED
	Cross Laser
Symbologies	2D	PDF417, QR Code, Data Matrix,AZTEC, CSC, Maxicode,Micro QR, Micro PDF417, GM ,Code One, etc.
	1D	EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Plessey, MSI Plessey, Code 93, etc.
Resolution	≥3mil
Typical Depth of Field	EAN-13	55-350mm (13mil)
	Code 39	55-145mm (5mil)
	PDF417	45-130mm (6.7mil)
	Data Matrix	50-150mm (10mil)
	QR Code	45-190mm (15mil)
Scan Mode	Sense mode, Continuous mode, Trigger mode
Scan Angle	Roll: 360°, Pitch: ±50°, Skew:±55°
Field of View	Horizontal 35°, Vertical 22°
Min. Symbol Contrast	≥25%

Mechanical/Electric
Interface	RS-232, USB
Dimensions	41.5(W)×49.5(D)×24.5(H)mm
Weight	75g
Notification	Beep, LED indicator
Operating Voltage	5VDC±5%
Current @ 5VDC	Operating	214mA (typical), 269mA (max.)
	Standby	82mA

Environmental
Operating Temperature	-20℃ to 60℃ (-4°F to 140°F)
Storage Temperature	-40℃ to 70℃ (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
ESD	±14 kV (air discharge), ±8 kV (direct discharge)
Drop	1.5m
Sealing	IP54

Certifications
FCC, CE, RoHS

Environmental(optional)
Cable	USB	Used to connect the RT234 to a host device.
	RS-232	Used to connect the RT234 to a host device.
Power Adapter	DC5V adapter to power the RT234 with RS-232 cable.
