Topqrscan,As a famous 2D Barcode Scanner Module supplier and 1D Barcode Scan Engine Wholesaler,suitable for all kinds of small terminals: PDA, POS, Tablet, Notebook, Bluetooth ring scanner, Bluetooth pocket scanner, etc.
Specification
✔️1D&2D barcode (QR,DM,PDF417 etc)
✔️Automatic reading & Command trigger
✔️Size: 23.5mm×16.2mm×6.8mm
Connection
TTL-232
USB HID/CDC
Certificate
CE、FCC、RoHS
Small Barcode Scan Engine
❇️Square & Cross Laser Aimer
❇️Compact and Lightweight Design.
❇️Read Poor Quality Bar Codes.
❇️Excellent Bar Code Reading Performance.
❇️Windows, Linux, Android, Arduino, Raspberry PI
❇️Application : POS, Locker, Handheld device, Self-service terminal
(✹Optional)
Compact and Lightweight Design

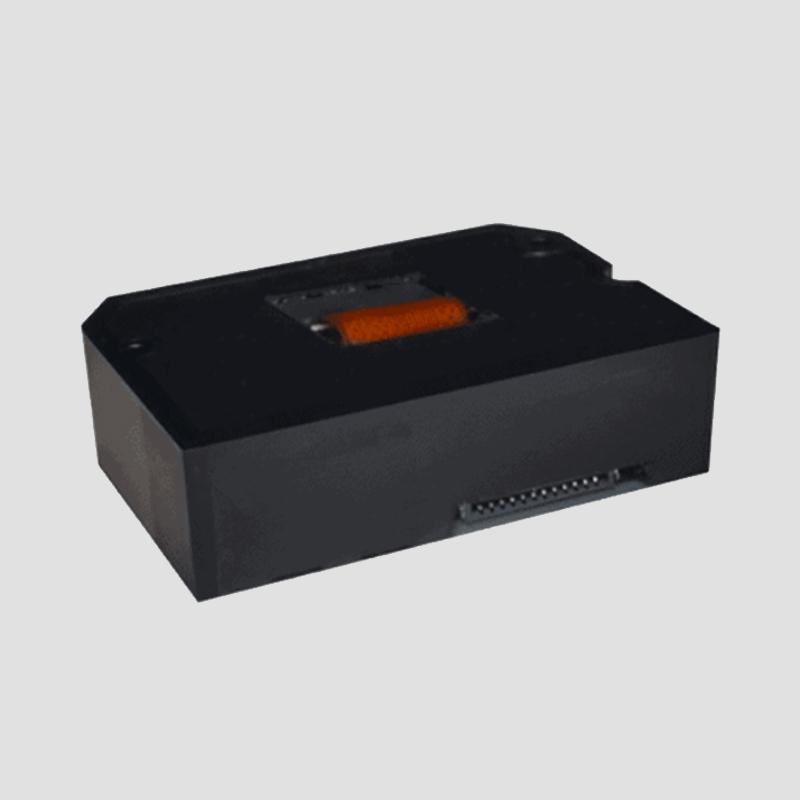

The miniature size, light weight and seamless integration of imager and decoder board facilitates the integration of the barcode scan engineTQS 218into a wide variety of thin-and-light equipment.
Read Poor Quality Bar Codes
Applied with newest technology, this barcode scan engine can easily read even poor quality bar codes: damaged bar codes, low contrast bar codes, torn bar codes, warped or wrinkled bar codes.
Square & Cross aimer
With a square & cross aimer, users can accurately and easily point to the barcode and achieve quick reading. This makes a better user experience.
Excellent Bar Code Reading Performance
Great performance to read most types of common
1d /2d bar code, whatever read from paper or from phone screen.
The TQS218 is outstanding at its super compact design, laser accurate amering and its excellent performance for decoding almost all types 1d and 2d bar code, includes Aztec and Maxicode.
It is suitable for all kinds of small terminals: PDA, POS, Tablet, Notebook, Bluetooth ring scanner, Bluetooth pocket scanner, etc.
We provide 3D-Drawing, integration Guide which support your easy and quick integration work with your terminals.
Integration Accessories
To facilitate our customer integration, we provide Screws, Flat cables, Connectors, USB/RS232 EVK (We also call it development kit board) and their schematic. But they are all optional, you can tell our sales people do you need them or not when you place order.
For example, we can control the scanner's read/illumination... by sending commands to the scanner. We provide a detailed introduction to let you know how to do the command control. Ask our people to get full documents.
| Performance | ||
| Image Sensor | 640 * 480 CMOS | |
| Illumination Aiming | White LED | |
| Cross envelope | ||
| Symbologies | 2D | PDF417 , QR Code, Data Matrix, Aztec, Maxicode |
| 1D |
EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN 128, RSS, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Plessey, MSI Plessey, Code 93, etc. |
|
| Resolution | For 2D: ≥5mil , 1D: ≥5mil , (differ from different type bar codes) | |
| Typical Depth of Field | Code128 | 30-170mm (5mil) |
| Code 39 | 40-160mm (5mil) | |
| PDF417 | 30-120mm (5mil) | |
| Data Matrix | 20-100mm (10mil) | |
| QR Code | 30-210mm (20mil) | |
| Scan Mode | Sense mode, Continuous mode, Command trigger | |
| Scan Angle | Roll: 360°, Pitch: ±55°, Skew:±55° | |
| Field of View | Horizontal 42°, Vertical 32° | |
| Min. Symbol Contrast | 25% | |
| Mechanical/Electric | ||
| Interface | TTL-232; USB | |
| Dimensions | 23.5(W)×16.2(D)×6.8(H) mm (max.) | |
| Weight | 3g | |
| Notification | Beep, LED indicator | |
| Operating Voltage | 3.3VDC + 5% | |
| Current @ 3.3VDC | Operating : 230mA; Standby: 15mA | |
| Environmental | ||
| Operating Temperature | -30℃ to 70℃ | |
| Storage Temperature | -40℃ to 80℃ | |
| Humidity | 5% to 95% (non-condensing) | |
| Accessories(optional) | ||
| Development kit board: | USB |
USB virtual Com or USB-HID; equipped with a trigger button, beeper and USB interfaces |
