Topqrscan is Famous Bluetooth Handheld Barcode Scanner Supplier and barcode scanner handheld wireless manufacturer,can effortlessly capture high-density, damaged, vague and distorted barcodes.
Product specifications

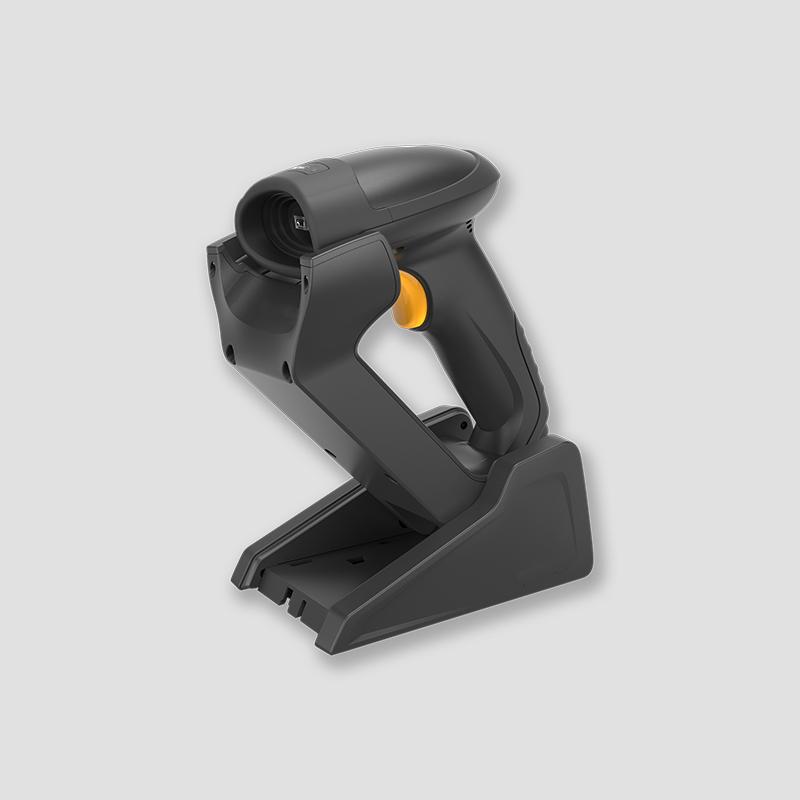

Wireless Handheld Barcode Scanner
Low Consumption and Great Compatibility
The low consumption of TQS1580 reduces connection issues and maximizes the compatibility for diverse applications.
Outstanding Performance
Equipped with key decoding technology, the TQS1580 can effortlessly capture high-density, damaged, vague and distorted barcodes.
Powerful Data Editing Function
TQS1580 allows to customize decoding mode flexibly through preset.
Reliable and Stable Wireless Communication
Adopting the latest Bluetooth which is strong anti-interference and stable to transmit the data.
Specifications
|
Performance
|
Image Sensor |
|
2500 CCD |
| Illumination |
|
Red LED (622nm-628nm) | |
| Symbologies | 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey | |
| Resolution |
|
≥4mil | |
| Typical Depth of Field |
EAN-13 Code 39 Code 128 |
55mm-550mm (13mil) 90mm-160mm (5mil) 50mm-410mm (10mil) |
|
| Scan Angle |
|
Pitch: ±60°, Roll: 360°, Skew: ±60° | |
| Min. Symbol Contrast |
|
25% |
|
Wireless
|
Communication Modes |
|
Synchronous, asynchronous and batch mode |
| Radio Technology |
|
Bluetooth 5.0 | |
| Communication Distance |
|
50m (open space) | |
| Battery |
|
2200 mAh lithium-ion battery | |
| Expected Charge Time |
|
4 hours (with power adapter) | |
| Expected Battery Life |
|
15 hours of continuous operation (scan once per 6 seconds) | |
| Memory Capacity |
|
≥15000 pieces of Code 128 (20 byte of each Code 128) |
|
Physical
|
Dimensions (L×W×H) |
|
Scanner: 113.5×73.3×159.0mm |
| Weight |
|
Scanner: 217g | |
| Interfaces |
|
RS-232, USB | |
| Operating Voltage |
|
5VDC±5% | |
| Notification |
|
Beep, LED |
|
Environmental
|
Operating Temperature |
|
-20°C to 60°C (-4°F to 140°F) |
| Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) | |
| Humidity |
|
5%~95% (non-condensing) | |
| ESD |
|
±8 KV (air discharge); ±4 KV (direct discharge) | |
| Drop |
|
Scanner: 1.5m Cradle: 1m | |
| Sealing |
|
Scanner: IP42 | |
| Battery Charge Temperature |
|
0°C to 45°C (32°F to 113°F) |
|
Certifications
|
Certificates & Protection |
|
FCC Part15 Class B, CE EMC Class B. RoHS |
