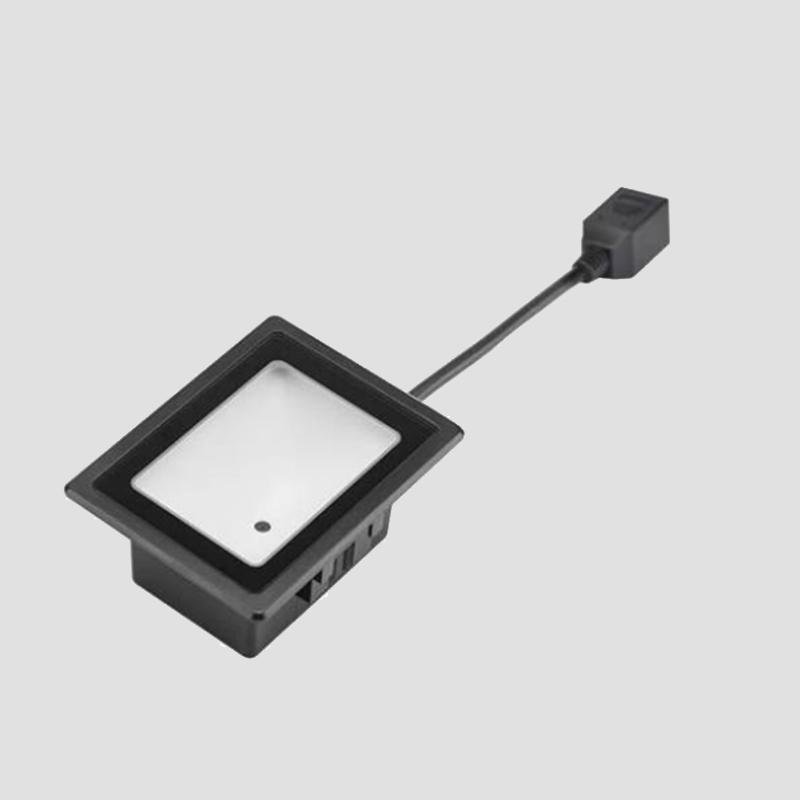

Topqrscan Bus station 2D Barcode Scanner Supplier and Metro station Barcode Scanner manufacturer,It reads very well most 1D and 2D barcode such as QR code, Data matrix, Code 93 from both LCD screen and paper/tickets etc.
Specification
Connection
Certificate
Industrial level IP66 rated for water and dust resistance
Large scanning window provides a better reading range

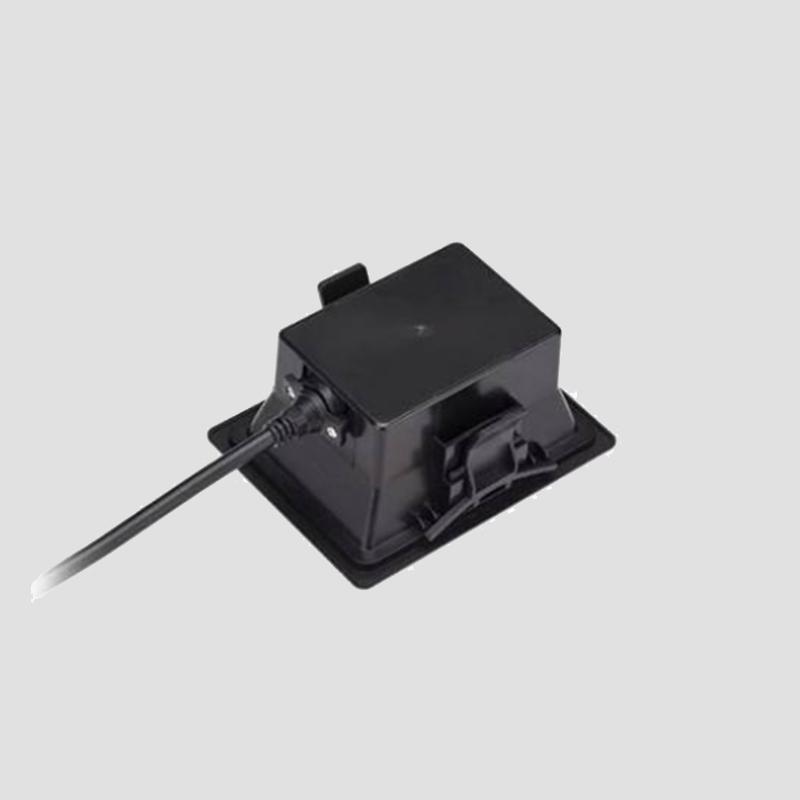

The quick installed buckle design makes your integration easy
Application : Access control for Outdoor, Bus and Metro Station
(✹Optional)
With the IP66 rated water and dust proof, TQS820 is ideal to use for outdoor applications.The large scanning window and enhanced illumination inside the scanner makes it reads very fast different barcodes at a larger and wider range, especially for bar codes from phone screen.
It reads very well most 1D and 2D barcode such as QR code, Data matrix, Code 93 from both LCD screen and paper/tickets etc.

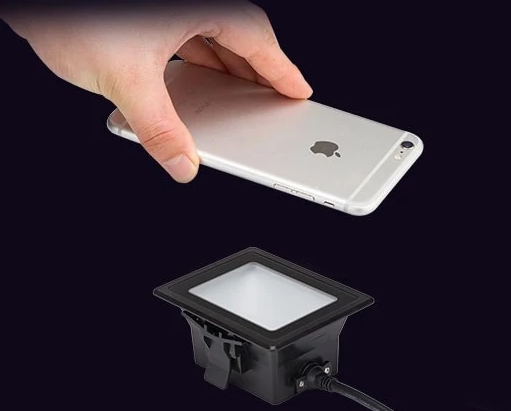

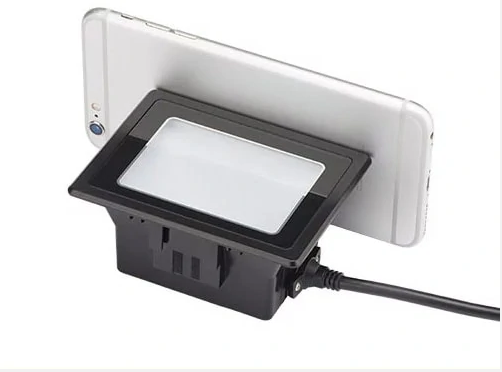

With a 70cm*50cm large scanning window, the bar code can be easily entered into the visible area of the scanner, so that the scanner can capture and read the code easily. In addition, whatever with a small size screen or big size screen, the scanner can read the code from the phone easily.
Scan 2d QR and bar codes from 360 degree as you want, 90ms per scan, reading distance from 0cm to 11cm.

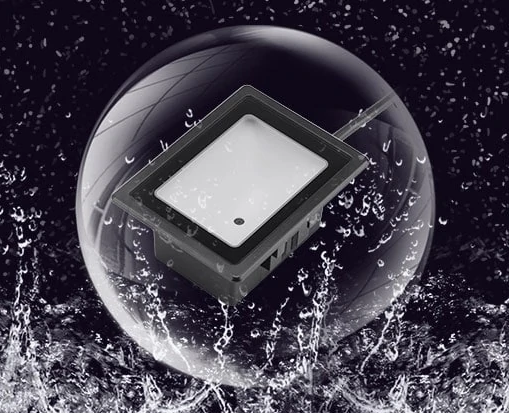

IP66 industrial level, water-proof and dust-proof.
|
Performance |
Image Sensor |
640 * 480 CMOS |
|
|
Reading distance |
0-11cm |
||
|
Reading speed |
30ms per scan |
||
|
Scanning window |
70*50mm |
||
|
Symbologies |
2D |
QR Code, Data Matrix, etc. |
|
|
1D |
EAN-8, RSS_14, CODE_39, CODE_93, CODE_128, ITF,CODABAR, inverse code, image code, etc. |
||
|
Scan Mode |
Sense mode, detect and read automatically |
||
|
Scan Angle |
Roll: 360°, Pitch: ±40°, Skew:±30° |
||
|
Field of View |
Horizontal 77°, Vertical60° |
||
|
Min. Symbol Contrast |
25% |
||
|
Mechanical/ Electric |
Interface |
RS232; USB-HID (HID-KBW or HID Development Mode) |
|
|

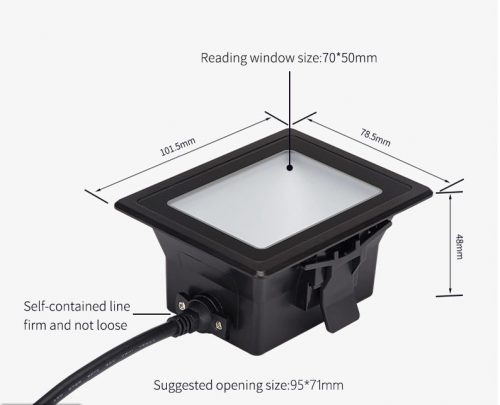

Dimensions |
101.5mm*78.5mm*48mm |
||
|
Weight |
156.8g |
||
|
Material |
ABS+tempered glass |
||
|
Notification |
Buzzer, green/red light |
||
|
Operating Voltage |
5V-12V |
||
|
Current |
159mA (Typically, 5V) |
||
|
Environmental |
Operating Temperature |
-20℃ to 70℃ |
|
|
Storage Temperature |
-40℃ to 80℃ |
||
|
Static Protection |
EN 61000-4-2 |
||
|
Humidity |
5% to 95% (non-condensing) |
||
|
Ambient illuminance |
0-80000Lux (not direct sunlight) |
||
|
OS |
Windows(XP\7\8\10), Linux, Android, Mac |
||
|
Protection class |
IP66 waterproof and dust-proof |
||

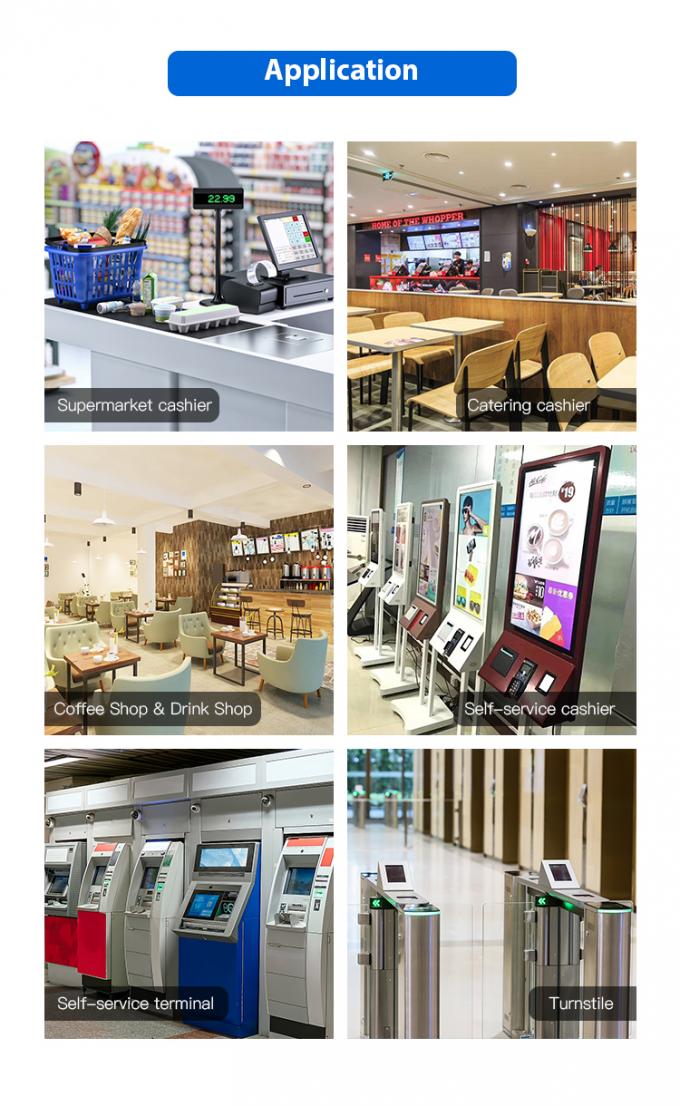

Application:
Can be widely used for all kinds of access control applications.
