Topqrscan is famous China Portable small handheld barcode scanner Supplier,Wholesaler,1D Handheld Barcode Scanner delivers aggressive scanning capabilities and excellent user experiences at an attractive price.
Product specifications
Features
Cost-effective Solution

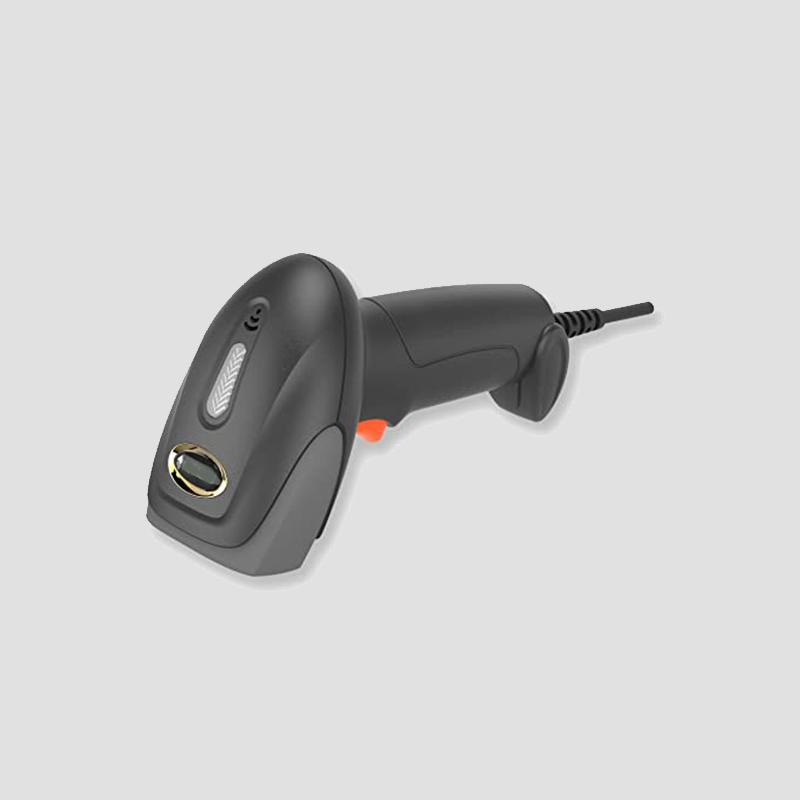

TQS1070 handheld scanner delivers aggressive scanning capabilities and excellent user experiences at an attractive price.
Ergonomic Lightweight Design
This ergonomic lightweight scanner fits comfortably in any user’s hands to reduce the fatigue of long-time operation, ideally suited for scan-intensive applications.
Snappy Scanning Performance
TQS1070 scanner offers an impressive read rate of up to 300 scans per second, helping boost productivity and profitability.
|
Performance |
Image Sensor |
640 * 480 CMOS |
|
|
Reading distance |
0-10cm |
||
|
Reading speed |
70ms per scan |
||
|
Scanning window |
59*46mm |
||
|
Symbologies |
2D |
QR Code,PDF417,AZTEC etc. |
|
|
1D |
CODE 128, ISBN 10, ISBN 13, CODE 39, CODE 93, EAN 13, ITF,UPC-A, UPC-E, EAN 8 etc. |
||
|
Scan Mode |
Sense mode: detect and read automatically |
||
|
Scan Angle |
Roll: 360°, Pitch: ±40°, Skew:±30° |
||
|
Field of View |
Horizontal 77°, Vertical60° |
||
|
Resolution |
≥7mil |
||
|
Min. Symbol Contrast |
25% |
||
|
Mechanical/ Electric |
Interface |
RS232, USB-HID, TTL-232, Wi-Fi |
|
|
Dimensions |
RTX200A: 90mm*70mm*48mm; RTX200B: 95mm*84mm*48mm; RTX200C: 88mm*67mm*48mm; |
||
|
Weight |
140g |
||
|
Notification |
Buzzer, white light |
||
|
Operating Voltage |
5V-15V wide voltage input |
||
|
Current |
0.15A (5V) or 0.05A (15v) |
||
|
NFC |
13.56Mhz ID card |
Only supports reading the physical card number. Mifare_UltraLight, Mifare_One(S50), Mifare_One(S70), Mifare_Pro(X), Mifare_Desire. |
|
|
Environmental |
Operating Temperature |
-20℃ to 70℃ |
|
|
Storage Temperature |
-40℃ to 80℃ |
||
|
Humidity |
0% to 95% (non-condensing) |
||
|
OS |
Windows(xp\7\8\10), linux, Android, Mac |
||
