Topqrscan is professional China PC Desktop Scanner Supplier and desktop qr code reader manufacturer ,is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.
Product specifications
Decode Capability 1D, 2D
Connectivity Corded
Dimension 66.3×76.3×38mm
Weight 120g
Sealing IP42
Interface USB

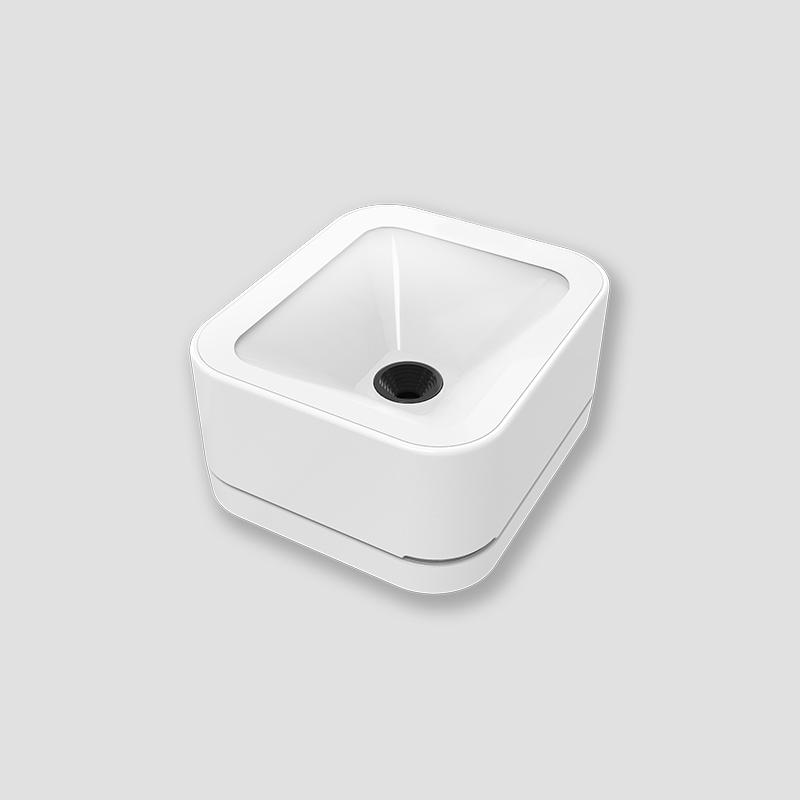

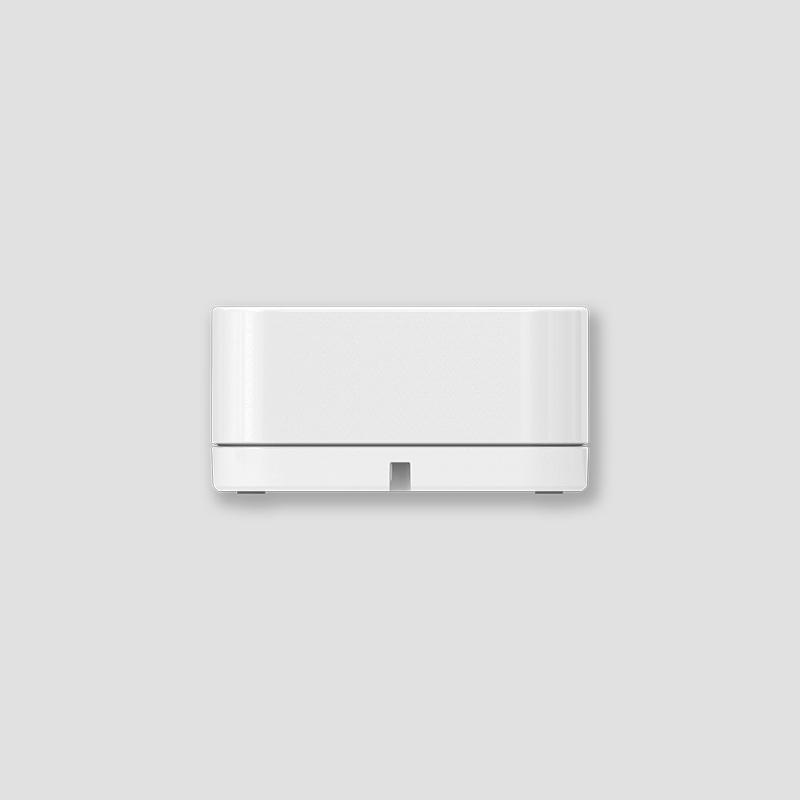

Desktop Barcode Scanner
Snappy On-screen Barcode Capture
Optimized for digital barcode reading, this CPU-based scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.
Space-saving Scanner
Thanks to its lightweight, compact design,TQS2780 can be conveniently positioned on a small narrow desk, a store shelf or at customer retail points where counter space is at a premium.
Superior Motion Tolerance
Exceptional motion tolerance (2.7m/s) and large FOV (horizontal 68°, vertical 51°) enhance user experience.
World-leading UIMG® Technology
Armed with TOPQRSCAN's latest-generation UIMG® technology, TQS2780 can decode even poorer quality barcodes, such as soiled or wrinkled labels, with ease.
PRODUCT SPECIFICATIONS
|
Performance
|
Image Sensor |
|
640 * 480 CMOS |
| Illumination |
|
White LED | |
| Symbologies |
2D 1D Postal |
QR Code, Micro QR Code, PDF 417, Micro PDF 417, Data Matrix, Aztec, Maxicode, GM Code, Chinese Sensible Code, GM Code, Code One. EAN-8, EAN-13, UPC-E, UPC-A, Code 128, Coupon, UCC/EAN128, Interleaved 2 of 5, Febraban, ITF-14, ITF-6, Matrix 2 of 5, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, AIM 128, ISBT 128, Code 49, Code 16K. USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal. |
|
| Resolution |
|
≥5mil | |
| Typical Depth of Field |
EAN-13 PDF417 Data Matrix QR Code |
20mm-105mm (13mil) 30mm-40mm (6.7mil) 30mm-45mm (10mil) 0mm-85mm (15mil) |
|
| Scan Angle |
|
Roll: 360°, Pitch: ±75°, Skew: ±75° | |
| Min. Symbol Contrast |
|
20% | |
| Scan Mode |
|
Sense mode, Continuous mode | |
| Motion Tolerance |
|
2.7m/s | |
| Field of View |
|
Horizontal 68°, Vertical 51°, Diagonal 84.8° |
|
Physical
|
Dimensions (L×W×H) |
|
66.3(W) ×76.3(D) ×38(H) mm (max.) |
| Weight |
|
120g | |
| Operating Voltage |
|
5VDC±5% | |
| Rated Power Consumption |
|
698mW (typical) | |
| Current@5VDC |
Operating Idle |
140mA (typical) 100mA (typical) |
|
| Interfaces |
|
USB |
|
Environmental
|
Operating Temperature |
|
-20°C to 60°C (-4°F to 140°F) |
| Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) | |
| Humidity |
|
5% to 95% (non-condensing) | |
| ESD |
|
±12 KV (air discharge); ±8 KV (direct discharge) | |
| Drop |
|
1.5m | |
| Sealing |
|
IP42 | |
| Ambient Light |
|
0~100,000lux (natural light) |
|
Certifications
|
Certificates & Protection |
|
VCCI, RoHS, CE, FCC |
