Topqrscan is famous China qr code scanner desktop Supplier and desktop scanners manufacturer, is able to speedily "sense" and decode barcodes that are presented to it, markedly increasing throughput and productivity.
Product specifications
Decode Capability 1D, 2D
Connectivity Corded
Dimension 100.3×120.3×102.8mm
Weight 296g
Sealing IP54Interface USB

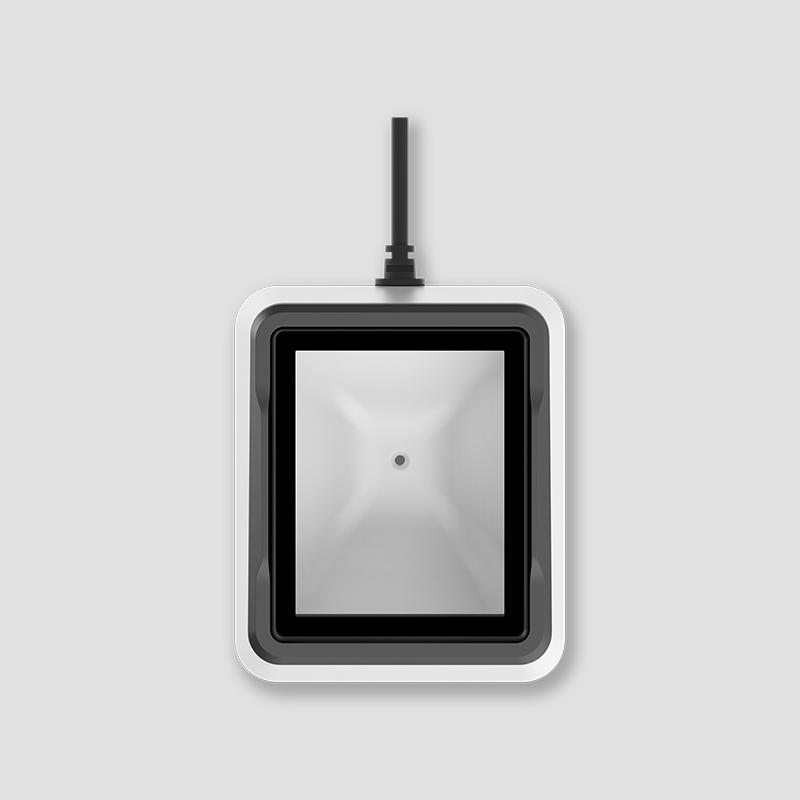

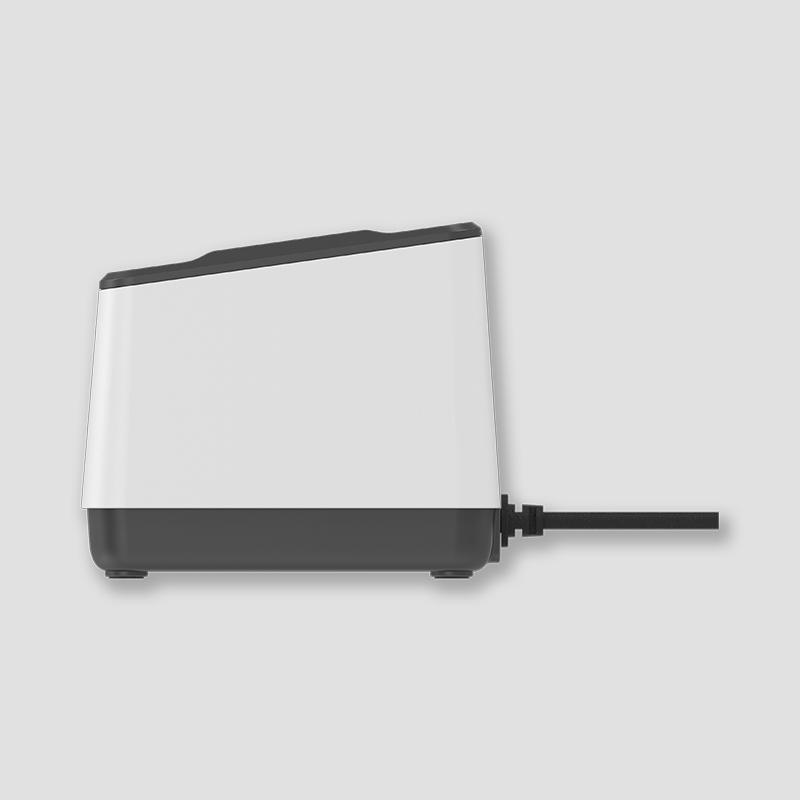

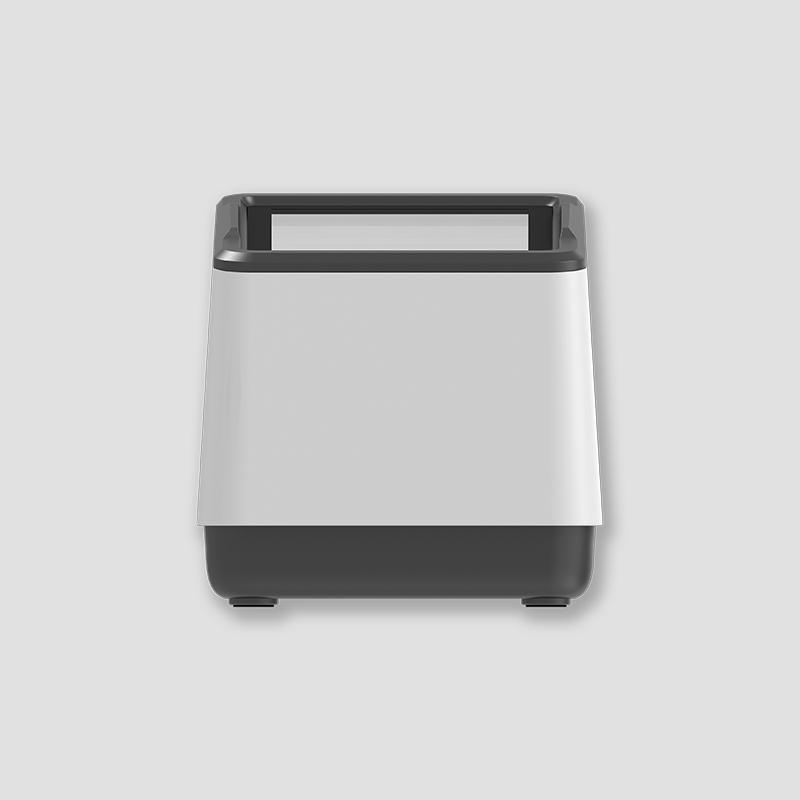

Desktop QR Code Scanner For Business
Diffuse Illumination
TQS 2080 offers a diffuse and extremely even illumination which closely resembles natural light to make it possible for rapid capture of barcodes on a screen at low brightness levels.
Improved Sensitivity
TQS 2080 is able to speedily “sense” and decode barcodes that are presented to it, markedly increasing throughput and productivity.
LED Indicator & Buzzer
TQS 2080 uses both audible and visible indicators to notify users when it decodes a barcode, ensuring that users can easily keep track of scanner feedback and properly complete scans, saving valuable worker time.
Large Scan Window
TQS 2080 provides a large scan window to further enhance the user experience.
Snappy On-screen Barcode Capture
Armed with Topqrscan's fifth generation of UIMG® technology, TQS 2080 can decode 1D and 2D barcodes accurately and rapidly and is incredibly reader-friendly on smartphone & tablet displays.
Performance
|
Image Sensor |
|
640 * 480 CMOS |
Illumination |
|
White LED | |
Symbologies |
2D 1D |
PDF417, Data Matrix, QR Code, Micro QR Code, Aztec EAN-8, EAN-13, UPC-A, UPC-E, ISSN, ISBN, Codabar, Standard 2 of 5, Code 128, Code93, ITF-6, ITF-14, GS1 Databar, MSI-Plessey, Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Plessey, etc. |
|
Resolution |
|
>5mil | |
Scan Angle |
|
Pitch: ±50°, Roll: 360°, Skew: ±45° | |
Min. Symbol Contrast |
|
30% | |
Scan Window |
|
82mm×64mm | |
Screen Brightness |
|
≥15% | |
Field of View |
|
Horizontal 69.5°, Vertical 54.8° |
Physical
|
Dimensions (L×W×H) |
|
100.3(W)×120.3(D)×102.8(H)mm |
Weight |
|
296g | |
Notification |
|
Beep, LED indicator | |
Operating Voltage |
|
5VDC±5% | |
Current@5VDC | Operating | 118.4mA (typical), 174.5mA (max.) | |
Interfaces |
|
USB | |
Rated Power Consumption |
|
837.3mW |
Environmental
|
Operating Temperature |
|
-20°C to 60°C (-4°F to 140°F) |
Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) | |
Humidity |
|
5%~95% (non-condensing) | |
ESD |
|
±8 KV (air discharge); ±4 KV (direct discharge) |
Certifications
|
Certificates & Protection |
|
FCC Part15 Class B, CE EMC Class B, RoHS |
