Topqrscan is QR Code Combo Reader Supplier and ID Card Passport Reader Manufacturer,is easily installed into the devices like self-service terminals, kiosks, access control gate applications for personal information checks.
Specification
Decoding Capability:
1D Barcode
2D Code
Machine readable passports and ID cards conforming to ICAO Document 9303.
Machine readable passports (MRP) : 2 lines of 44 characters
Machine readable ID cards: 2 lines of 36 characters,3 lines of 30 characters.
Connection
USB-KBW
USB-VCOM
USB HID-POS
RS232
RS485
TTL-3.3V/TTL-5V
Certificate
CE、FCC、RoHS
OCR/MRZ and QR Code Combo Reader
High-resolution barcode reader with1280*800 pixel CMOS Sensor.
Compact size design 52mm×52mm×25mm.
Compatible with Windows, Linux, Android, Raspberry PI,Arduino,STM32 or ESP32
SDK: Windows,Linux,Java,Python
Application: parcel locker station, smart terminals, vending machines etc.

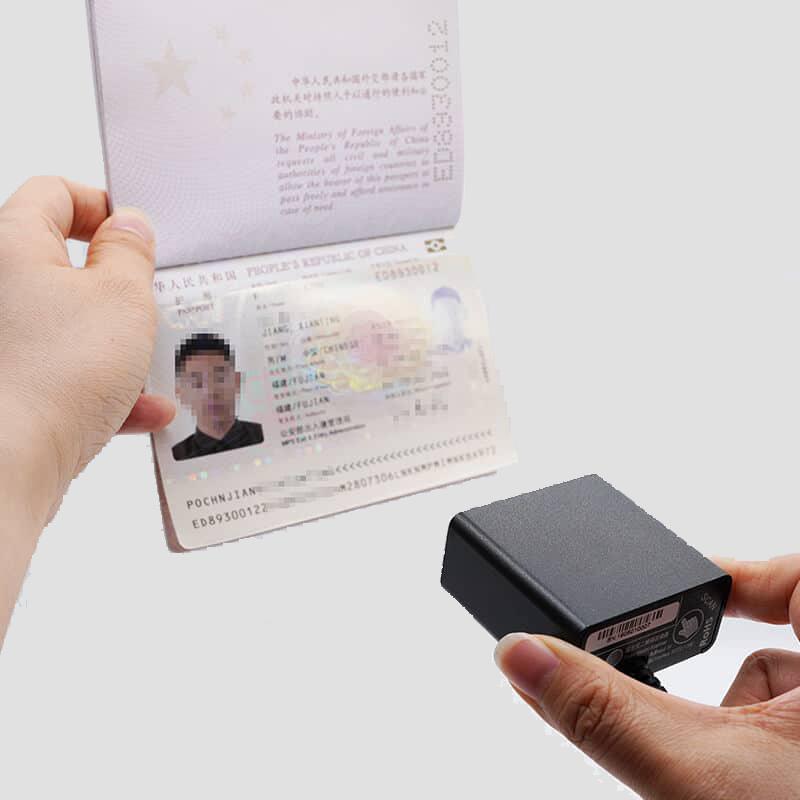

TQS 540 is specifically designed for reading the machine readable passport,OCR B ID Cards such as European national ID cards and EU Green Pass QR Code, PDF417 on USA Driver License.
The small size design makes the TQS 540 easily installed into the devices like self-service terminals, kiosks, access control gate applications for personal information checks.
Integration Accessories
We will provide 3D drawing, hardware development manual FFC cables,transfer boards,Screws free which will support you to easy and quick installation. And also will provide USB/RS232 EVK board if you need to test on computer. Please specific your requirements before placing the order.
Setting Codes and parameter command Programming
It’s easy to set the configs of our scanner modules by only need to scan the according setting code from software development manual, and also support parameter command control the scanner settings like LED On/Off, enable/end reading by sending parameters from host computer.
TQS540H 2D Fixed Mount Barcode Scanner
|
Acquisition Performance |
|||
|
Model |
TQS540 |
TQS540H |
|
|
Sensor |
CMOS Sensor 640*480 |
CMOS Sensor 1280*800 |
|
|
Acquisition Speed |
1/120fps |
1/60fps |
|
|
FOV |
Diagonal 54° |
Diagonal 48.7° |
|
|
Precision |
1D ≥ 4mil , 2D ≥ 5mil |
1D ≥ 3mil , 2D ≥ 4mil |
|
|
Depth of Field(TF540) |
Symbologies |
DOF |
|
|
Code 128 10mil 18bytes (Paper) |
60~200mm |
||
|
Code 128 18bytes (Screen) |
60~200mm |
||
|
QR 10mil 160bytes (Paper) |
40~120mm |
||
|
QR 18bytes (Screen) |
50~250mm |
||
|
Depth of Field(TF540H) |
Code 128 10mil 18bytes (Paper) |
40~230mm |
|
|
Code 128 18bytes (Screen) |
40~230mm |
||
|
QR 10mil 160bytes (Paper) |
30~350mm |
||
|
QR 18bytes (Screen) |
30~350mm |
||
|
Scan Angle |
Roll 360°，Pitch ± 55°，Skew ± 55° |
||
|
Symbologies |
2D Code: QR Code,Data Matrix,PDF417,Han Xin Code,Dotcode,etc. |
||
|
1D Code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar,etc. |
|||
|
OCR-A，OCR-B Standard（*TQS540H-OCR Special Version） |
|||
|
Print Contrast |
20% minimum reflectance |
||
|
Physical parameters |
|||
|
Size (mm) |
（L×W×H）52.5 mm × 52 mm × 25 mm |
||
|
Weight |
53g |
||
|
Mounting |
2*M3 machine screws, lock into 4.0mm. |
||
|
Interface |
|||
|
Interface |
USB serial port/USB KBW/TTL-3.3V/TTL-5V/RS232/RS485 |
||
|
Scanning Mode |
Trigger Mode/Command Mode/Sense Mode |
||
|
Notification |
Green LED, Double-LED, Beeper. |
||
|
Cable |
2 meter USB-A cable,2 meter DB9 cable with USB power supply |
||
|
Environmental |
|||
|
Operating Temperature |
-30℃ ~ 70℃ |
||
|
Storage Temperature |
-40℃ ~ 80℃ |
||
|
Humidity |
5% ~ 95% RH (non-condensing) |
||
|
Ambient Light |
Max.100,000 Lux |
||
|
Electrical |
|||
|
Input Voltage |
3-3.6V or 3.6-16V |
||
|
Operating Current |
<250mA |
||
|
Standby Current |
< 15mA (Trigger Mode) |
||
