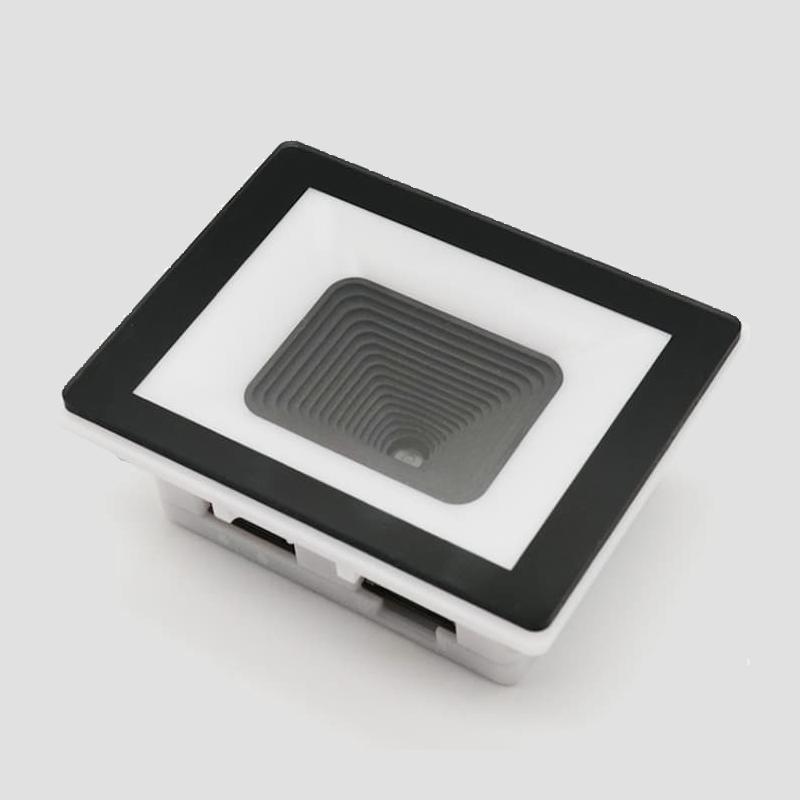

Self-Service Machine Used Compact Design QR Module TQS200

Self-Service Machine Used Compact Design QR Module TQS200

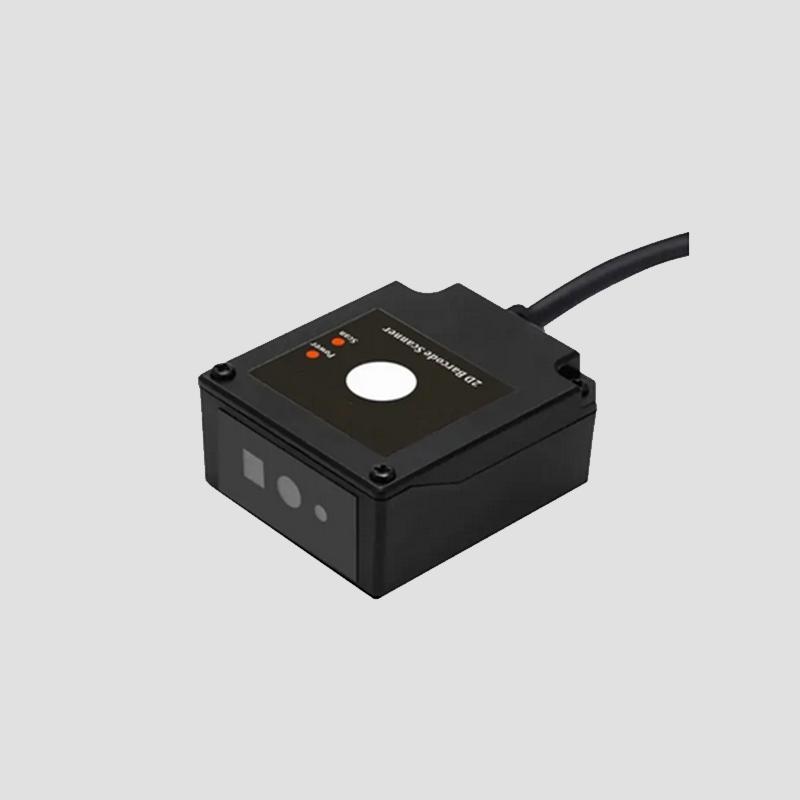

Topqrscan is famous China Embedded qr code scanner Supplier and QR Scanner Module manufacturer, Multiple interface support 2D QR Code Scanning Module for use in smart terminals, kiosks, turntiles etc

Specification

Work Excellent in dim environment such as underground subway

The LED brightness can be changed for different situation use

Connection

USB-KBW
USB-VCOM
USB HID-POS
TTL- 3.3V
TTL- 5V
RS485

Wiegand

Certificate

CE、FCC、RoHS

Inquiry now

Compact Design 2D Scanning Module

640*480 pixel with 120fps
Work perfectly both in dark environment and under strong light.
Compatible with Windows, Linux, Android, Raspberry PI,Arduino,STM32 or ESP32
SDK: Windows,Linux,Java,Python

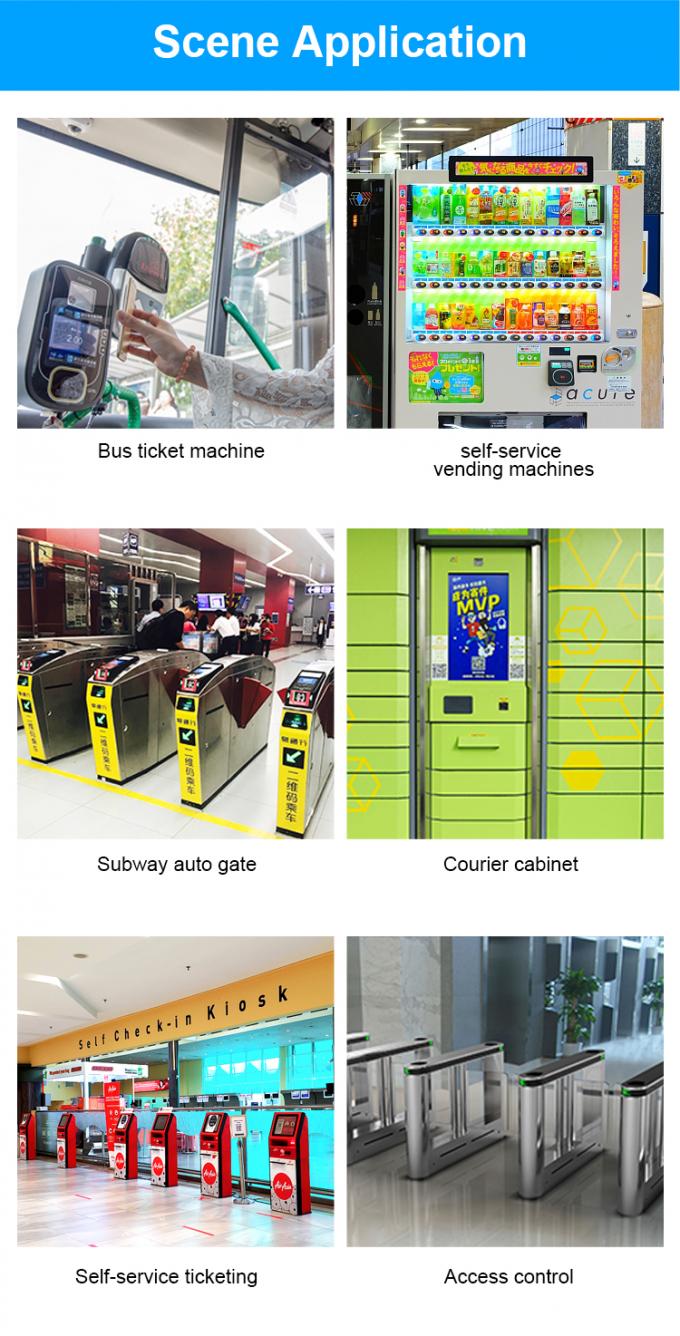

Application: Vending Machines, Kiosk, Turnstiles, Medical devices, ticketing terminals and other fields

Topqrscan embedded QR Code module TQS200 are widely used in self-service applications. The scanning and decoding efficiency is becoming more important for smart terminals, kiosk and vending machines solution providers.

The design of TQS200 is for easily integration into all kinds of kiosks to read 1D to 2D printed on paper, card and on-screen barcode.

We have another mode embedded scanner TQS200Z.

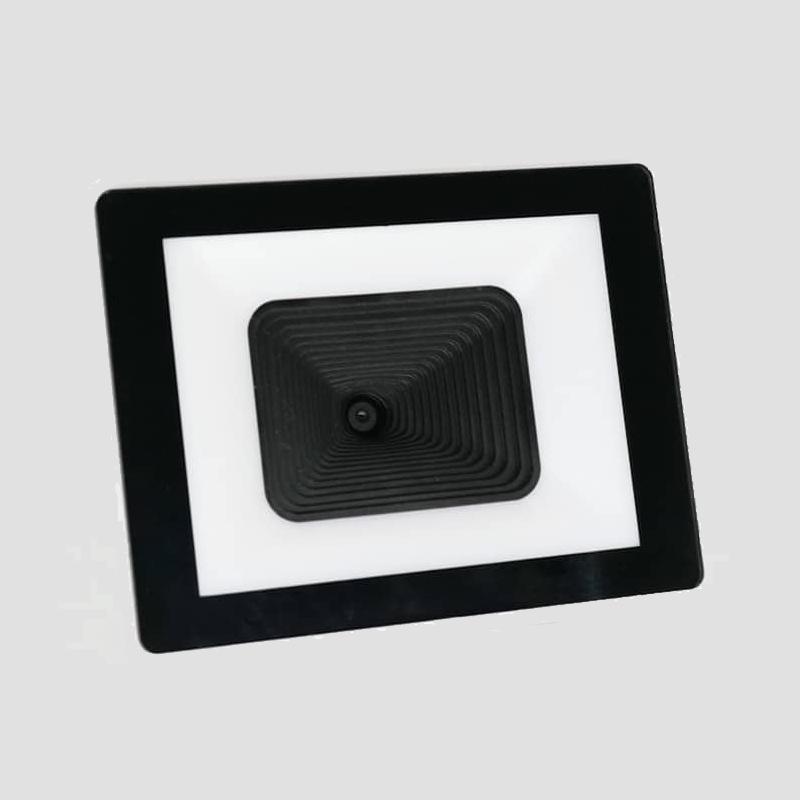

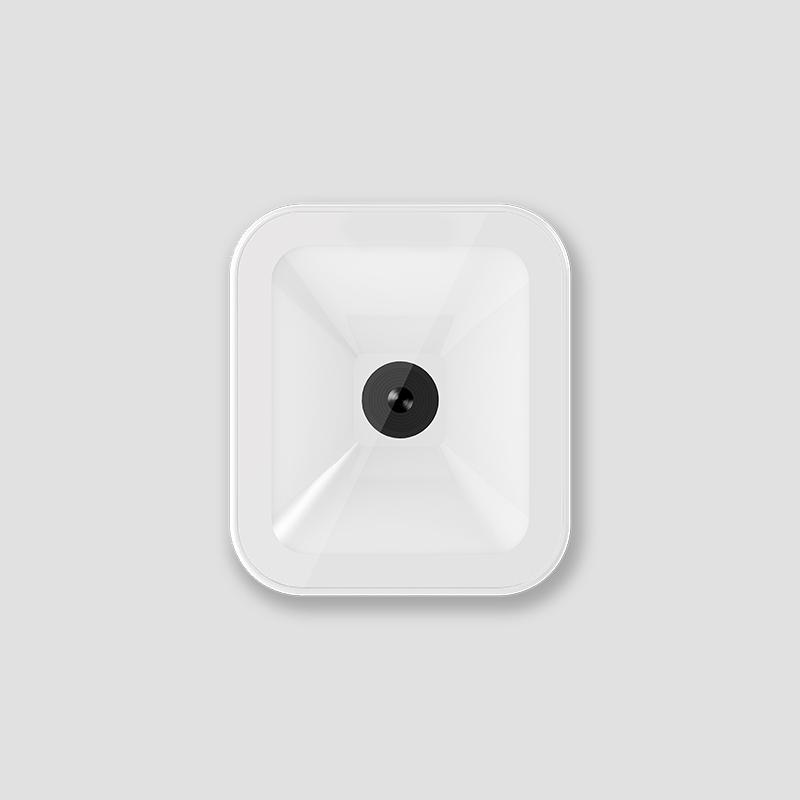

TQS200Z has no glass screen cover but with 4 screw holes for mounting, TQS200 has glass screen cover but without screw holes.

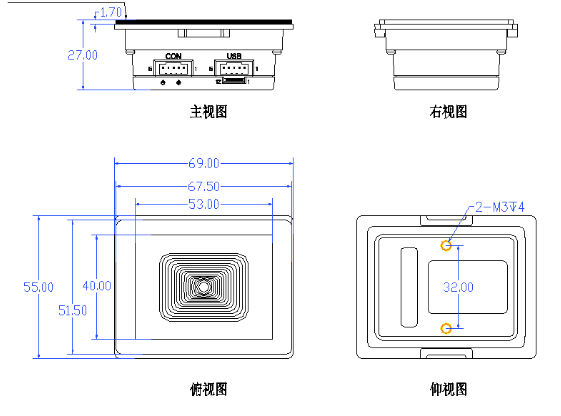

Dimension Diagram

1. Referenced CAD image can be provided, tolerance：+0.2mm
2. Camera stand in purple points（1mm thick), metal pin and copper nut in yellow points.

TQS200 Embedded Barcode Scanner Specification

Acquisition Performance
Sensor	Image Type，CMOS Sensor
Acquisition Speed	1/120fps
FOV	Diagonal 75°,Level 63°,Vertical 49°
Reading Performance
Precision	≥4mil
Reading Mode	Close to the barcode, 0-30cm（According to the different barcode）
Depth of Field	Testing Condition	Depth of Field
	Interleaved 2-of-5 7.5mil	40~120mm
	Code39 10b 4mil	50~80mm
	PDF417-2 80mm	50~90mm
	DM 100bytes 15mil	30~150mm
	QR 18bytes (on Screen)	30~250mm
Scan Angle	Roll 360°, Pitch ± 55°, Skew ± 55°
Symbologies	Conforms to the international and domestic general 2D code standards: QR Code，Data Matrix, PDF417,Aztec code, Han Xin Code,Dotcode,OCR,etc.
	Conforms to the international and domestic general 1D code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar,etc.
Print Contrast	20% minimum reflectance
LED
Illumination	White LED
Physical Parameter
Size (mm)	69×55×27（L×W×H）
Weight	<35g
Interface

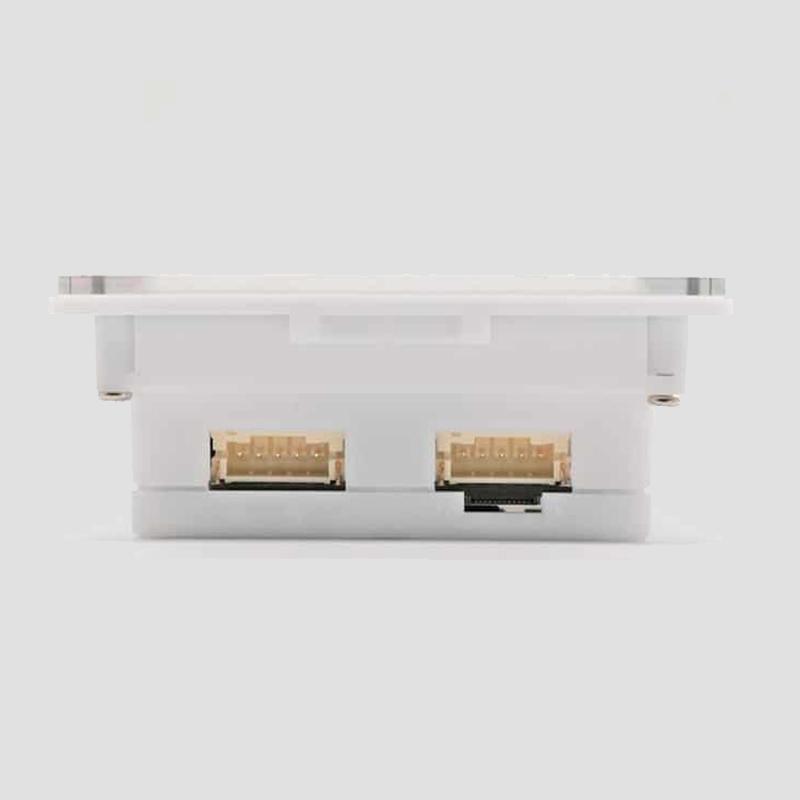

Socket	Double 5PIN sockets 3-3.6V or 3.6-16V power supply (configurable) Single 5PIN：USB SERIAL PORT/USB KBW Single 5PIN：3V TTL/5V TTL/RS232/RS485/Wiegand
Scanning Mode	Command Mode/Sense Mode/Trigger Mode
Notification	Green LED, Beeper

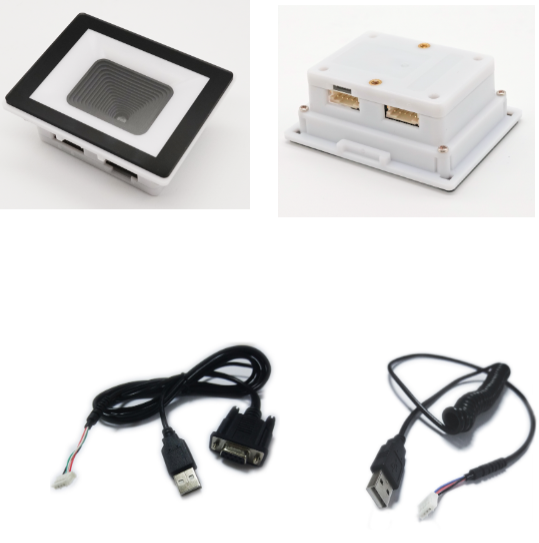

Cable（Optional）	2 meter USB cable、2 meter RS232 cable、customized
Environmental Parameter
Operating Temperature	-30℃ ~ 70℃
Storage Temperature	-40℃ ~ 80℃
Humidity	5% ~ 95% RH (non-condensing)
Ambient Light	Max.100,000 Lux
Electrical Parameter
Input Voltage	Input with 5-pin or 12-pin FPC； the voltage 3-3.6V or 3.6-16V (optional)
Operating Current	<200mA (3.3v Input), <160mA (5v Input), <100mA(10v Input)
Standby Current	<5mA(3.3v Input)
