Topqrscan is Fixed Mount Barcode Scanner Wholesaler and 2D Fixed Position Scanners Supplier, the scanner can quickly capture moving goods, which greatly enhances efficiency.
Product specifications
Decode Capability 1D, 2D
Form Factor All-in-One
Interface RS-232, USB
Illumination White LED
Dimension 114×46×94mm
Weight 145g

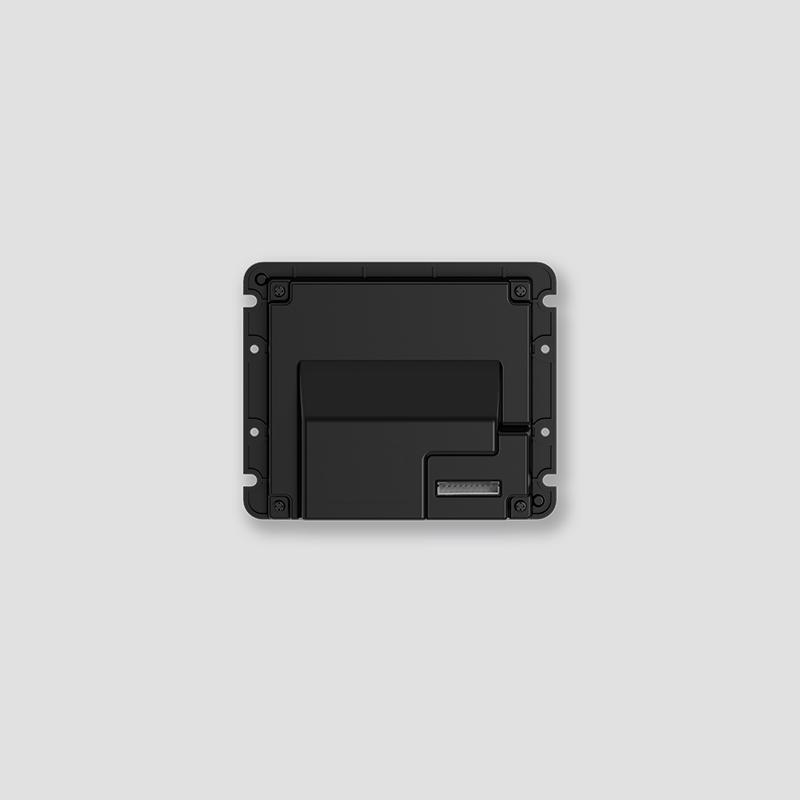

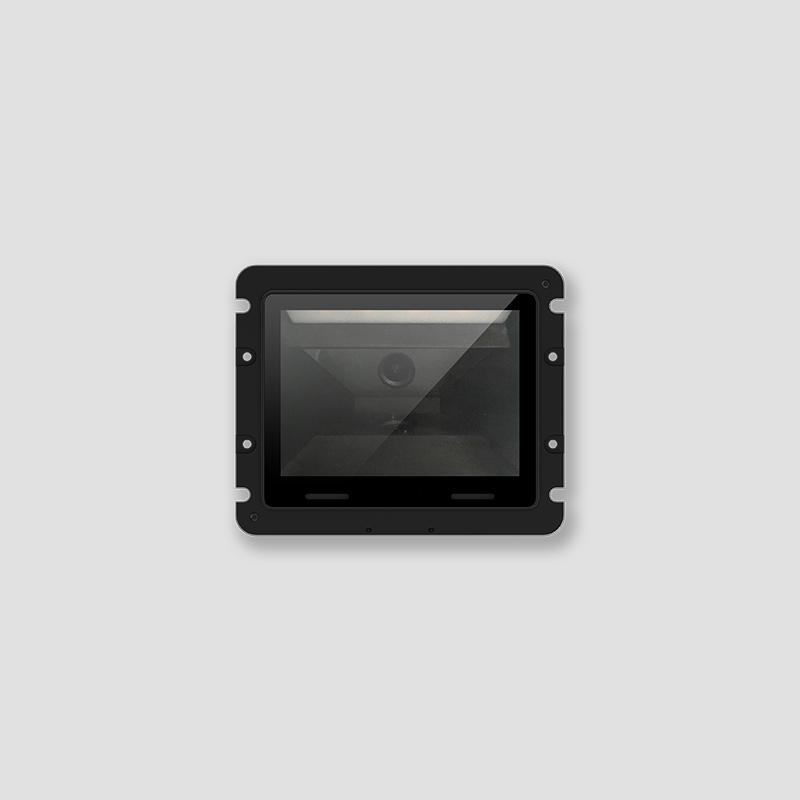

TQS 60 Fixed Mount 2D Barcode Scanner
High Motion Tolerance
With 2m/s motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.
Multiple Status indicators
6 kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.
Superior Scanning Performance
This scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the wrinkled, reflective and curved barcodes.
Wide-viewing Angle
Featuring wide-viewing angle, the scanner will conduct quick scanning when goods comes closer to the scan window.
Specifications
|
Performance
|
Image Sensor |
|
1280 * 800 CMOS |
| Illumination |
|
3000K white LED | |
| Symbologies |
|
2D: QR Code, PDF417, Data Matrix, Aztec 1D: Code 11, Code 128, Code 39, GS1-128（UCC/EAN-128）, AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar（RSS） |
|
| Resolution |
|
≥4mil (1D) | |
| Typical Depth of Field |
EAN-13 QR Code |
0mm-150mm (13mil) 0mm-100mm (15mil) |
|
| Scan Angle |
|
Roll: 360°, Pitch: ±55°, Skew: ±50° | |
| Min. Symbol Contrast |
|
≥25% (Code 128 10mil) | |
| Scan Mode |
|
Advanced sense mode | |
| Motion Tolerance |
|
＞2m/s | |
| Field of View |
|
Horizontal 65.6°, Vertical 44.6° |
|
Physical
|
Dimensions (L×W×H) |
|
114×46×94mm (max.) |
| Weight |
|
145g | |
| Notification |
|
Beep, LED indicator | |
| Operating Voltage |
|
5 VDC±5% | |
| Current |
Operating Idle |
275mA (typical), 365mA (max.) 228mA |
|
| Interfaces |
|
RS-232, USB |
|
Environmental
|
Operating Temperature |
|
-20°C to 50°C (-4°F to 122°F) |
| Storage Temperature |
|
-40°C to 70°C (-40°F to 158°F) | |
| Humidity |
|
5% to 95% (non-condensing) | |
| ESD |
|
±15 kV (air discharge), ±8 kV (direct discharge) | |
| Sealing |
|
IP52 |
|
Certifications
|
Certifications |
|
FCC Part 15 Class B, CE EMC Class B, RoHS |
