TOPQRSCAN is QR Code NFC Card Scanner Supplier and QR Code Scan Reader Manufacturer,The NFC module supports to read the MIFARE Classic,Ultralight C, Desfire, FELICA card.
Specification
Combine the reading of 1D barcode, 2D code and NFC card
Work Excellent in dim and luminous environment, read good at underground and outdoor
Connection
USB-KBW
USB-VCOM
USB HID-POS
TTL-3.3
TTL-5V
RS485
Wiegand
Certificate
CE、FCC、RoHS

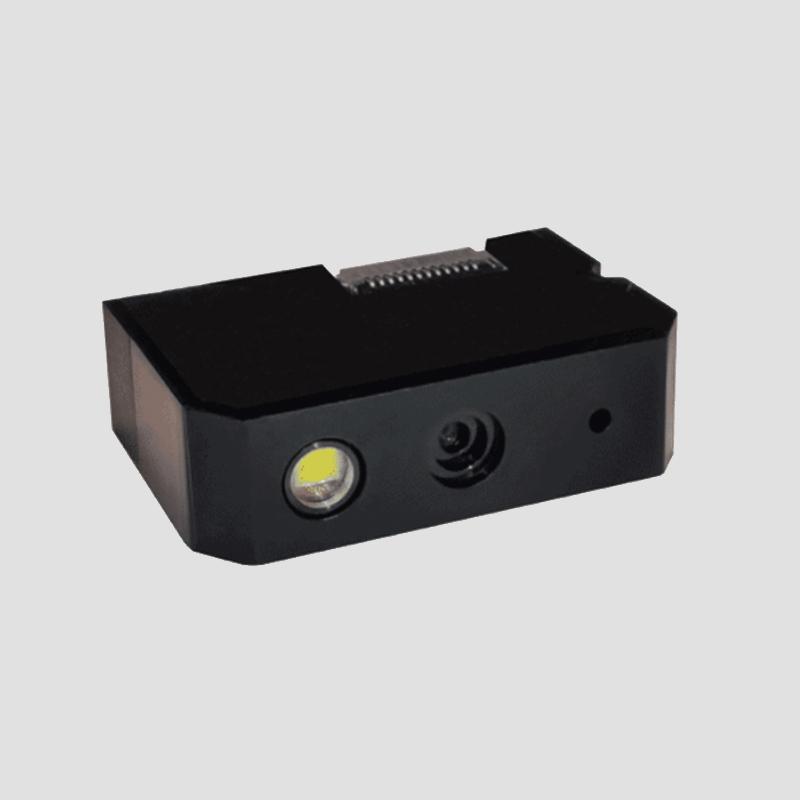

2D QR code and NFC card Scan Module
640*480 pixel with 120fps
Compatible with Windows, Linux, Android, Raspberry PI,Arduino,STM32 or ESP32
SDK: Windows,Linux,Java,Python
Application: Vending Machines, Kiosk, Turnstiles, Medical devices, ticketing terminals and other fields
The TQS 1070 combines the 13.56Mhz NFC and 1D barcode 2D code reading functions. The NFC module supports to read the MIFARE Classic,Ultralight C, Desfire, FELICA card. Can read UID or page, read and write the Block, also accept the customization.
Big scan window enables the TQS 1070 can read the long bar code such as the Code39 on the Singapore ID card, PDF417 code on the ID cards of Colombia, Chile, Costa Rica, El Salvador, Paraguay, Nicaragua etc and PDF417 code on USA Driver license.

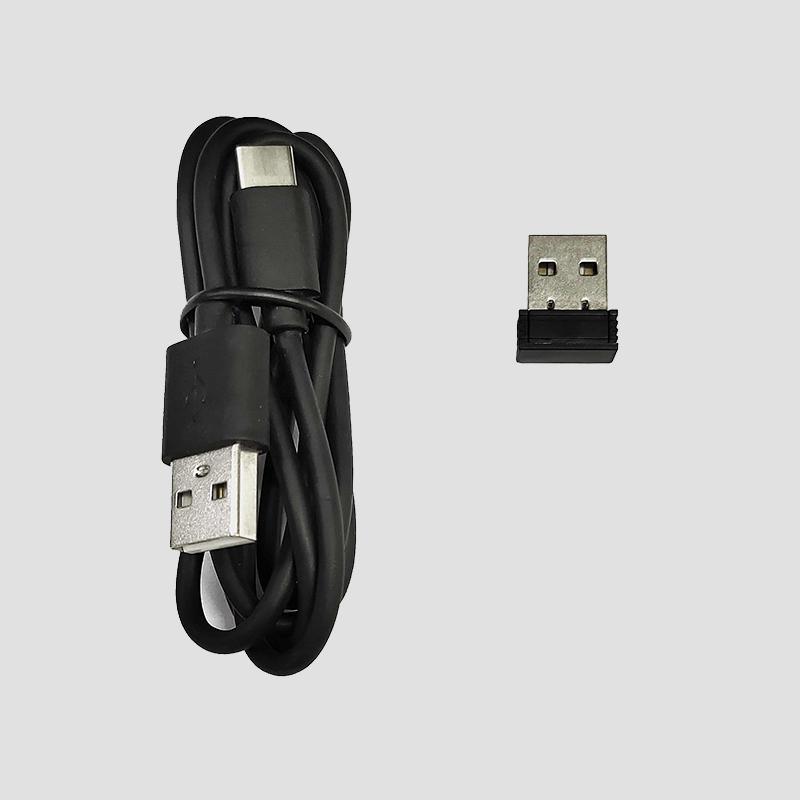

Integration Accessories
We will provide 3D drawing, hardware development manual FFC cables,transfer boards,Screws free which will support you to easy and quick installation. And also will provide USB/RS232 EVK board if you need to test on computer. Please specific your requirements before placing the order.

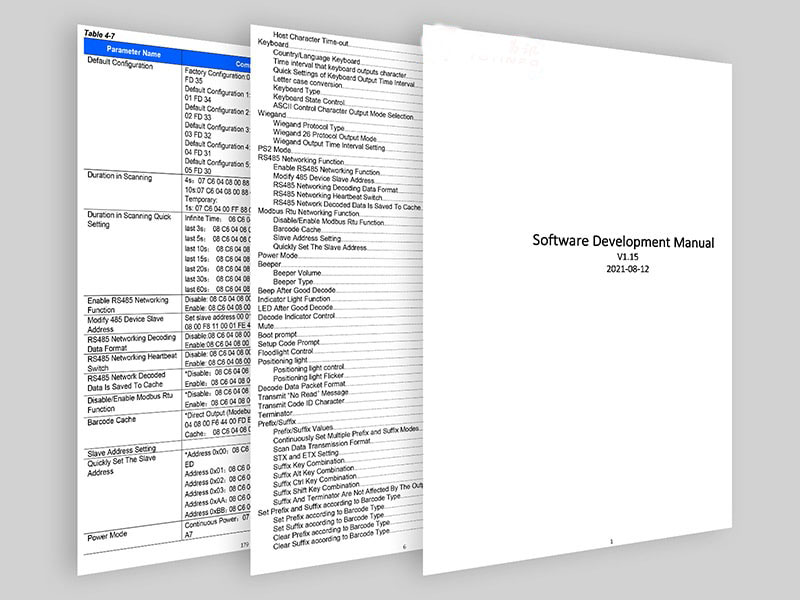

Setting Codes and parameter command Programming
It’s easy to set the configs of our scanner modules by only need to scan the according setting code from TOPQRSCAN software development manual, and also support parameter command control the scanner settings like LED On/Off, enable/end reading by sending parameters from host computer.

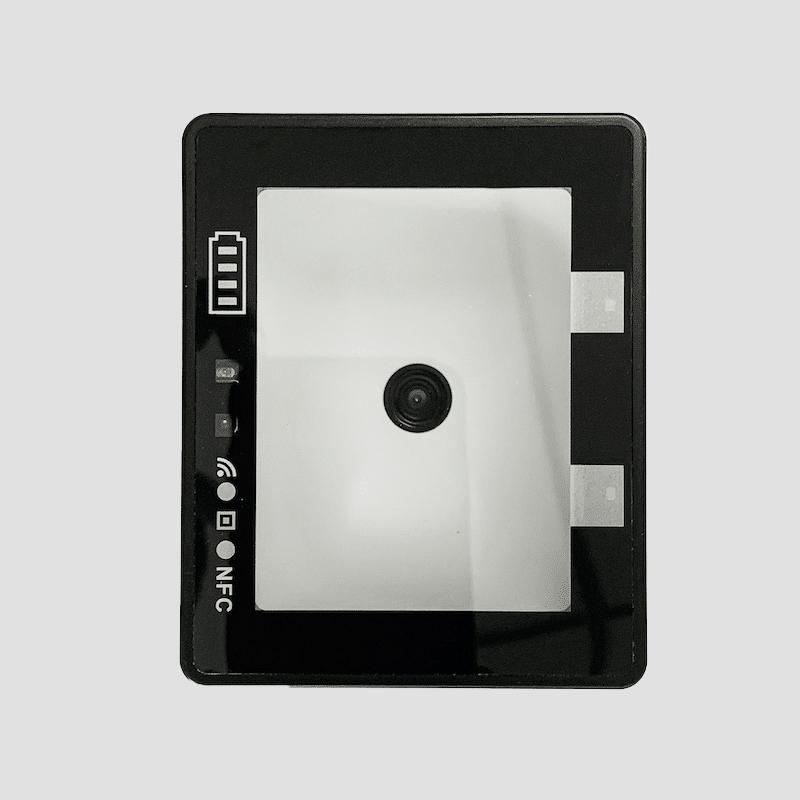

Wireless 1D/2D Code & NFC Card Scanner Box
|
Sensor Capability |
||
|
Sensor |
Image，CMOS Sensor |
|
|
Scanner Speed |
1/120 sec |
|
|
Field of View |
Diagonal 70°，Horizontal 55°，Vertical 45° |
|
|
Scan Capability |
||
|
Scan Precision |
2D≥7.5mil，1D≥4mil |
|
|
Depth of Field |
Testing Condition |
Depth of Field |
|
Code 128 10mil 18bytes |
0~90mm |
|
|
Code 128 18bytes |
0~120mm |
|
|
QR 10mil 160bytes |
0~55mm |
|
|
DM 15mil 100bytes |
0~90mm |
|
|
QR 18bytes |
0~255mm |
|
|
Scan Angle |
Roll 360°，Pitch ± 70°，Screw ± 70° |
|
|
Symbology |
2D Code: QR Code, Data Matrix, PDF417, Aztec Code, Han Xin Code etc.
1D Code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5, Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc. |
|
|
Symbol Contrast |
25% Minimum Reflectance |
|
|
Notification |
Beeper，LED Light |
|
|
Interface |
USB Type-C |
|
|
Scan Mode |
Infrared single time mode、Infrared continuous mode |
|
|
Setting |
Setting code scanning |
|
|
Frequency |
2400MHz |
|
|
Communication Distance |
70m(open area) |
|
|
Transmission Rate |
1Mbps |
|
|
Operation Current |
250mA（Operation）；50mA（Standby）；DC5V±0.25V（Charging） |
|
|
Battery Capacity |
2000mAh,Charging time:2h |
|
|
NFC |
||
|
Card Reading |
13.56Mhz NFC card reading，Type A/B card reading |
|
|
Reading Distance |
7cm (maximum) |
|
|
LED |
||
|
Illumination |
White LED |
|
|
Physical Parameter |
||
|
Size |
95mm×77mm×67mm (L×W×H) |
|
|
Weight |
223g（with battery） |
|
|
Material |
ABS |
|
|
Stand |
101mm×70mm×60mm（L×W×H） |
|
|
Weight of Stand |
91g |
|
|
Material of Stand |
Iron |
|
|
Environmental Parameter |
||
|
Operating Temperature |
0℃-45℃（Operation）；-40℃-60℃（Storage） |
|
|
Electrostatic Protection |
±15kV（Air Discharge）；±8kV（Direct Discharge） |
|
|
Certificate |
CE |
|
