Replace for 2D scanner module like NLS-N1,SE4770, SE4760, SE4720, SE47610, N3601,N3603,N3680 etc,Topqrscan is professional OEM 2d scan engine Supplier and 2D scanner module Factory.
Specification
Key holding & Automatic & Host command & Continuous reading
Connection
TTL- 3.3V

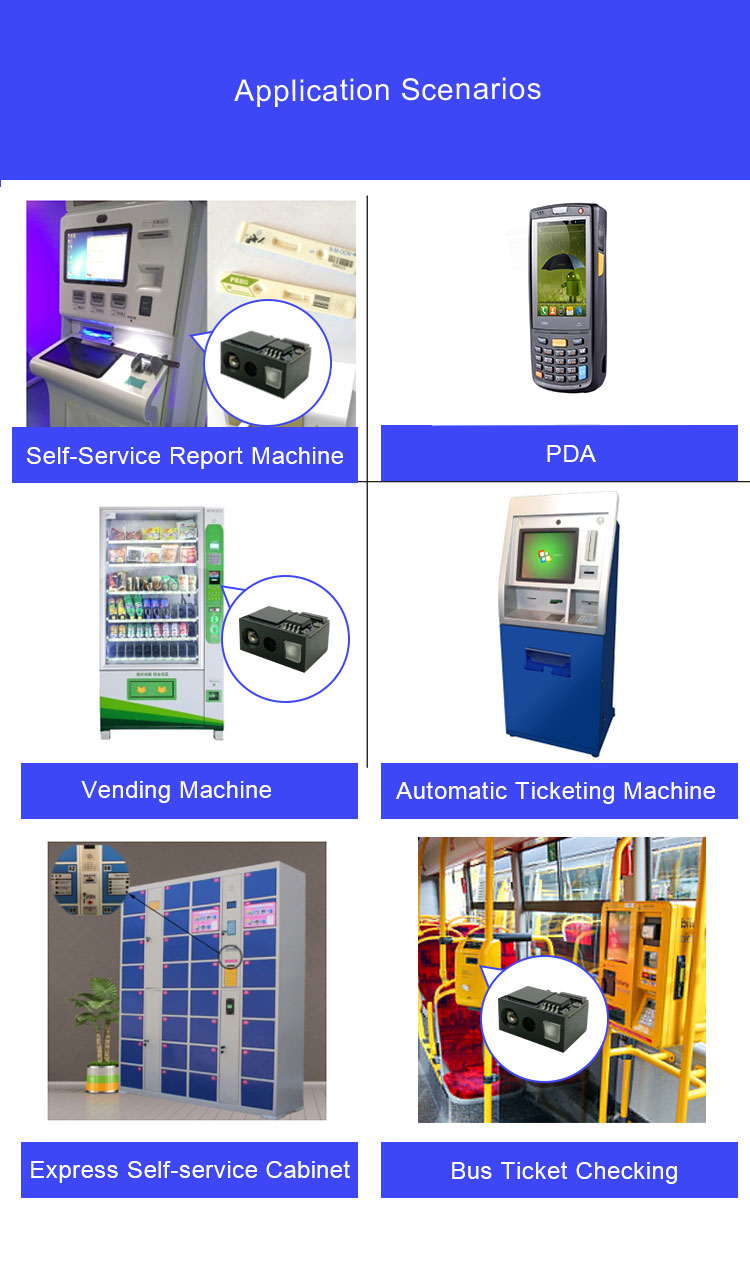

Application: Portable device, locker, POS, PDA( personal digital assistant) etc
Certificate
TQS4760 is only 21.5mm*10.3mm*8mm, easily for integrating into portal terminals like PDA, POS,Tablet, Notebook,glove and ring scanner, etc.
With the industry leading decoding algorithms, theTQS4760 scan module can decode all 1D and 2D code even they are long and high density with large angle and any depth of field.
The low power consumption (Stand-by Current＜0.5mA) makes it the ideal choice for portable solutions.
OEM 2d scan engine
The OEM 2d scan engineTQS4760 is the perfect reader for small dimension integration or for any space-constrained application. The small form factor allows for easy integration into test and measurement, industrial automation, vending machine, and point of sale applications.
TQS4760 OEM 2d Scan Engine is the perfect size for small dimension integration. It makes barcode scanning easy when you are looking for a cost-effective solution that is fast and easy to integrate. The E4760 scans standard 1D, PDF417 and 2D symbols both omnidirectional and bidirectional.
Our OEM 2D Scan Engine TQS4760 is perfect for integrating into small systems with limited space. This high-performance and reliable barcode scanner features a compact design, making it easier for integration into computer lab equipment and cash registers. Offering up to 30 FPS scanning and 4000 scans per second, the TQS4760 is ideal for large-scale retail businesses that need to process customer purchases quickly.

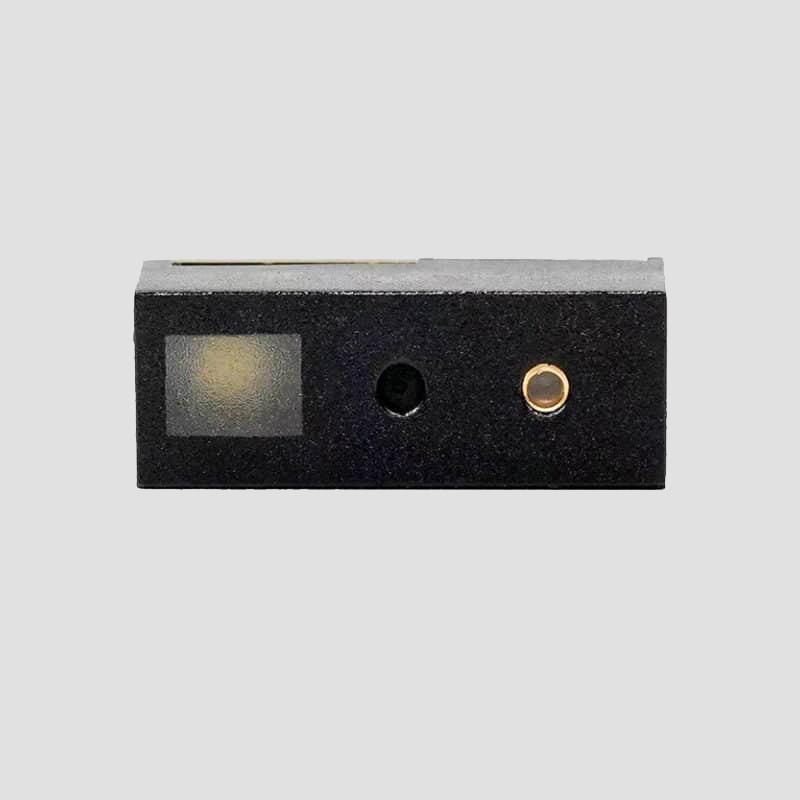

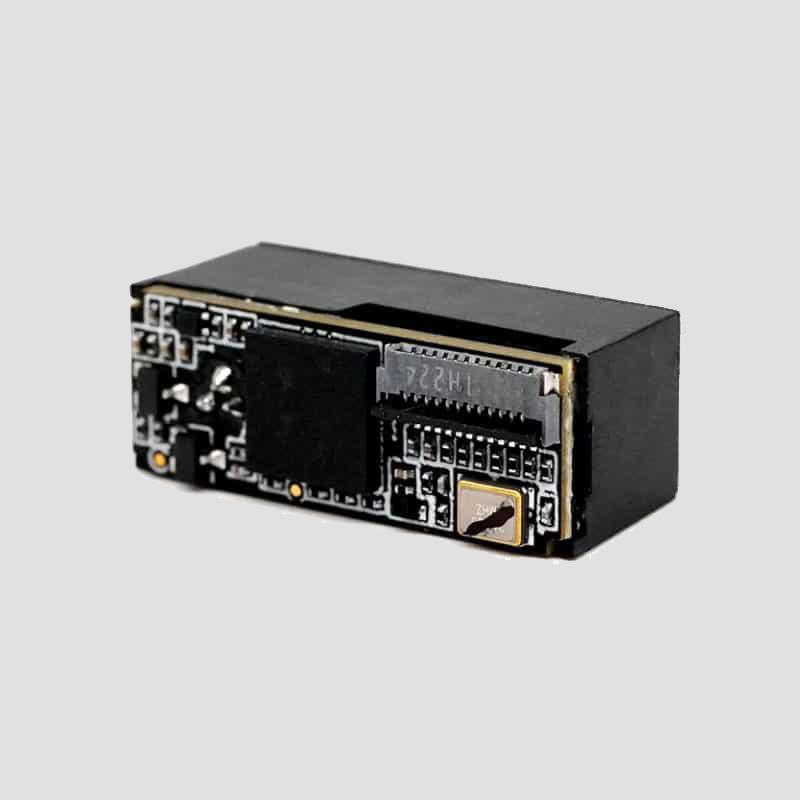

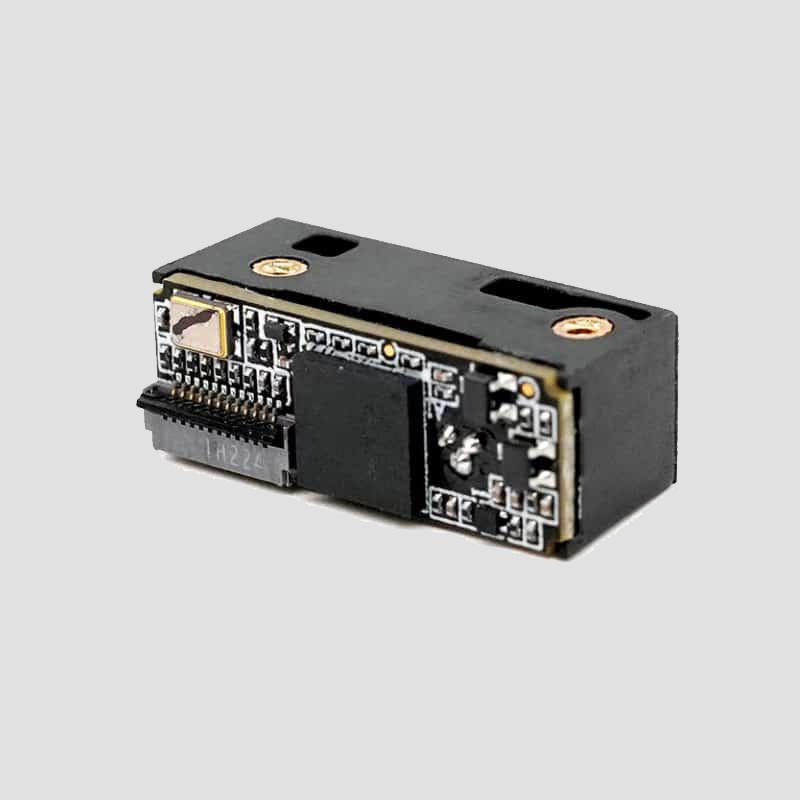

TQS4760 2D Code Scanner Engine
|
Acquisition Performance |
||
|
Mode |
TQS4760 |
|
|
Sensor |
Imager CMOS Sensor, 0.3M Pixels |
|
|
Acquisition Speed |
1/60fps |
|
|
FOV |
Diagonal 58°,Level42°,Vertical 36. |
|
|
Reading Performance |
||
|
Precision |
2D≥5mil,1D≥3mil |
|
|
Depth of Field |
Testing Code |
TQS4760 Depth of Field |
|
Code 39 4mil |
40~120mm |
|
|
Code 128 5mil |
30~170mm |
|
|
Code 39 5mil |
30~160mm |
|
|
Code 39 20mil |
60~320mm |
|
|
100% UPCA |
40~290mm |
|
|
PDF417 5mil |
30~120mm |
|
|
Data Matrix 10mil |
20-100mm |
|
|
QR Code 20mil |
30~210mm |
|
|
Scan Angle |
Roll 360°,Pitch ± 55°,Screw± 55° |
|
|
Symbologies |
2D code: QR Code, Data Matrix, PDF417,Hanxin code |
|
|
1D Barcode: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar etc |
||
|
Symbol Contrast |
20% Minimum Reflectance |
|
|
Illumination LED |
||
|
Illumination |
White |
|
|
Laser Aiming |
||
|
Aiming |
RED,Cross Envelope |
|
|
Physical Parameter |
||
|
Dimension |
(L×W×H):21.5mmx 10.3mm x8mm |
|
|
Weight |
3g |
|
|
Interface |
||
|
Interface |
UART, USB Serial Port，USB KBW （Support GBK、GB2312、UTF ） |
|
|
Decoder Board Socket |
12pin,0.5Pitch,Up and Down are compatible |
|
|
Scan Mode |
Trigger Mode/Command Mode/Sense Mode |
|
|
Install Hole |
Two screw holes; Recommend to use PB1.7mm Flat tail self-tapping screws,locked to depth no more than 3.5mm |
|
|
Environmental Data |
||
|
Operating Temperature |
-20℃ ~ 60℃ |
|
|
Storage Temperature |
-40℃ ~ 80℃ |
|
|
Humidity |
Relative Humidity 5% ~ 95%（no-condensing） |
|
|
Ambient Light |
Max.100,000 Lux |
|
|
Electrical Parameter |
||
|
Input Voltage |
3.3V±0.3V |
|
|
Operating Current |
＜190mA |
|
|
Stand-by Current |
＜0.5mA |
|
