As a famous OEM 2D Fixed Mount Barcode Scanner manufacturer and Small OEM 1D fixed mount barcode scanner supplier ,Applied with newest technology, this 2D fixed mount scanner can easily read even poor quality bar codes.
Specification
✔️1D&2D barcode (QR,DM etc)
✔️Automatic reading & Command trigger
✔️Small size: 48.08mm*41.45mm*21.56mm
Connection
USB✹
RS232✹

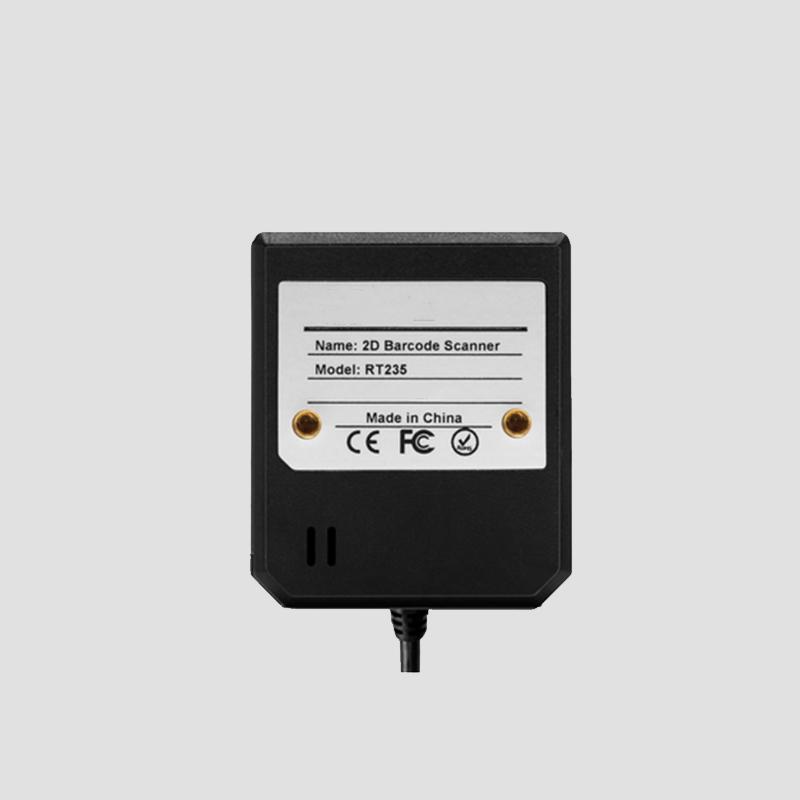

Certificate
CE、FCC、RoHS

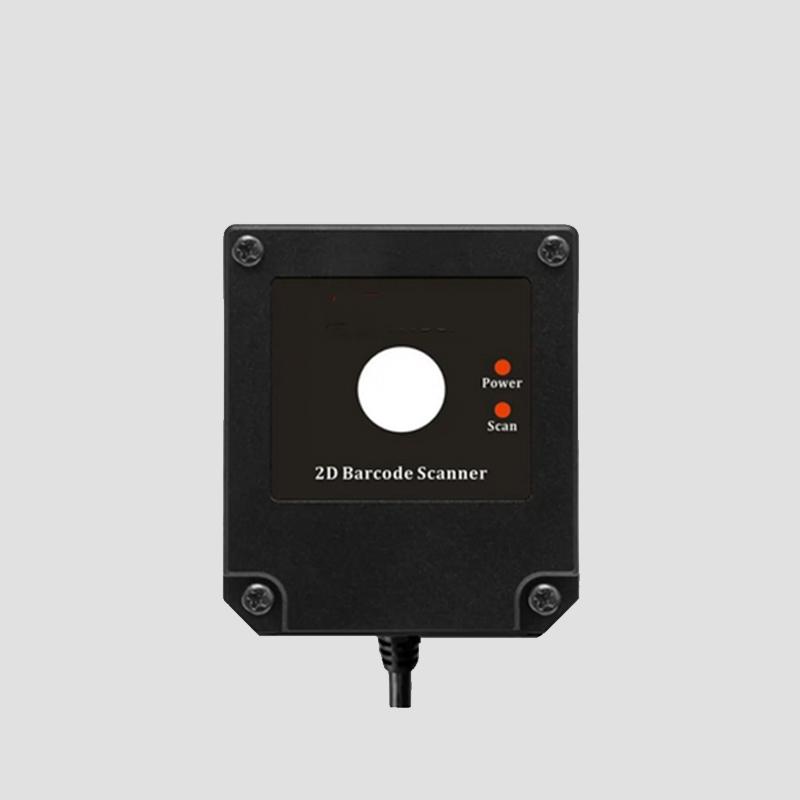

1D 2D Fixed Mount Barcode Scanner
Super fast barcode reading
Lower power consumption
Windows, Linux, Android, Arduino, Raspberry PI
Application: ATM, Locker, Kiosk, Self-service terminal
(✹Optional)
Read Poor Quality Bar Codes
Applied with newest technology, this barcode scanner can easily read even poor quality bar codes: damaged bar codes, low contrast bar codes, torn bar codes, warped or wrinkled bar codes.
Automatic Reading
The scanner TQS235 supports to automatically detect and read the bar code when we present the ID documents or paper in front of it.
Lower power consumption
Using advanced technology so the new barcode scanner is quite low power consumption and has outstanding power efficiency. This also prolongs the scan engine's service life.
Excellent Bar Code Reading Performance
Great performance to read most types of common 1d /2d bar code, whatever read from paper or from the phone screen. And it's outstanding at reading on-screen bar codeseven when the screen is covered by protective film or with lower brightness.
We provide 3D-Drawing and other related introduction which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
To program/ setup the scanner scanner module, you can just simply do it by setting codes from the User manual we provide. Remember to read the "Enter setup" code when you begin to setup. Please ask our sales people for the full detailed user manual.
The TQS 235 support to be controled by commands, for example, we can control the scanner's read/illumination... by sending commands to the scanner. We provide introduction to let you know how to do the command control. Ask our people to get full documents.
|
Performance |
Image Sensor |
640 * 480 CMOS |
|
|
Illumination Aiming |
White LED Red LED 625nm |
||
|
Symbologies |
2D |
PDF417 , QR Code, Data Matrix |
|
|
1D |
EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN 128, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Plessey, MSI Plessey, Code 11,Code 93, etc. |
||
|
Resolution |
≥3mil (differ from different type bar codes) |
||
|
Typical Depth of Field |
EAN-13 |
60-350mm (13mil) |
|
|
Code 39 |
40-150mm (5mil) |
||
|
PDF417 |
50-125mm (6.7mil) |
||
|
Data Matrix |
45-120mm (10mil) |
||
|
QR Code |
30-170mm (15mil) |
||
|
Scan Mode |
Sense mode, Continuous mode, Command trigger |
||
|
Scan Angle |
Roll: 360°, Pitch: ±60°, Skew:±60° |
||
|
Field of View |
Horizontal 42°, Vertical 31.6° |
||
|
Min. Symbol Contrast |
25% |
||
|
Mechanical/ Electric |
Interface |
RS232, USB (HID-KBW), USB-VCOM |
|
|
Dimensions |
48.08(W)×41.45(D)×21.56(H) mm (max.) |
||
|
Notification |
Beep, LED indicator |
||
|
Operating Voltage |
5VDC + 5% |
||
|
Current @ 5V DC |
Operating : 138mA(typical); Idle: 11.8mA ; Max: 300mA |
||
|
Environmental |
Operating Temperature |
-20℃ to 55℃ |
|
|
Storage Temperature |
-40℃ to 70℃ |
||
|
Humidity |
5% to 95% (non-condensing) |
||
