An embedded barcode scanner suitable for all kinds of service terminals.Embedded 2D Barcode Supplier and QR Code Reader factory offers an embedded design 2d barcode reader for all kinds of kiosk, self-service and ticketing terminals
Specification
✔️1D&2D barcode (QR,DM,Aztec etc)
✔️Automatic reading & Command trigger
✔️Barcode reading from Screen and Paper
Connection
USB✹
RS232✹
Certificate
CE、FCC、RoHS
Features
Sensitive detection and fast reading
Fixed mount design for embedded use
Windows, Linux, Android, Arduino, Raspberry PI

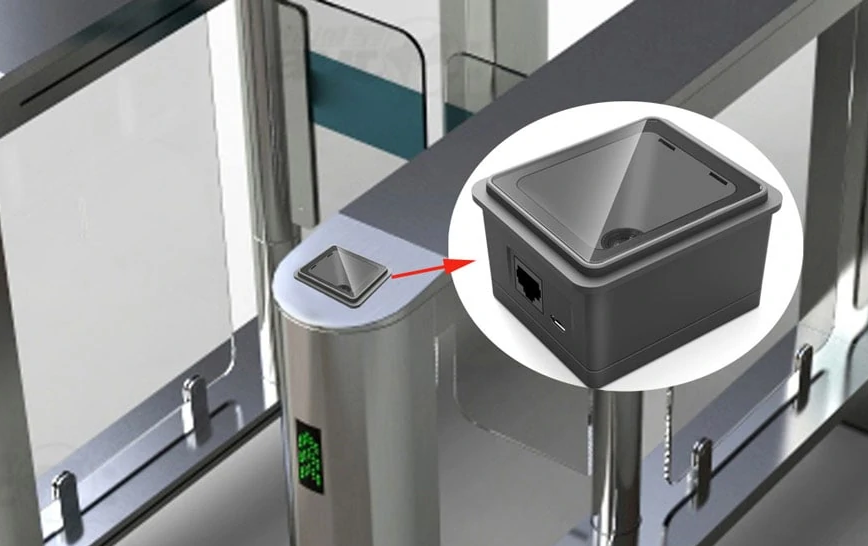

Application: Turnstiles, Vending machines, Self-service kiosks…
(✹Optional)

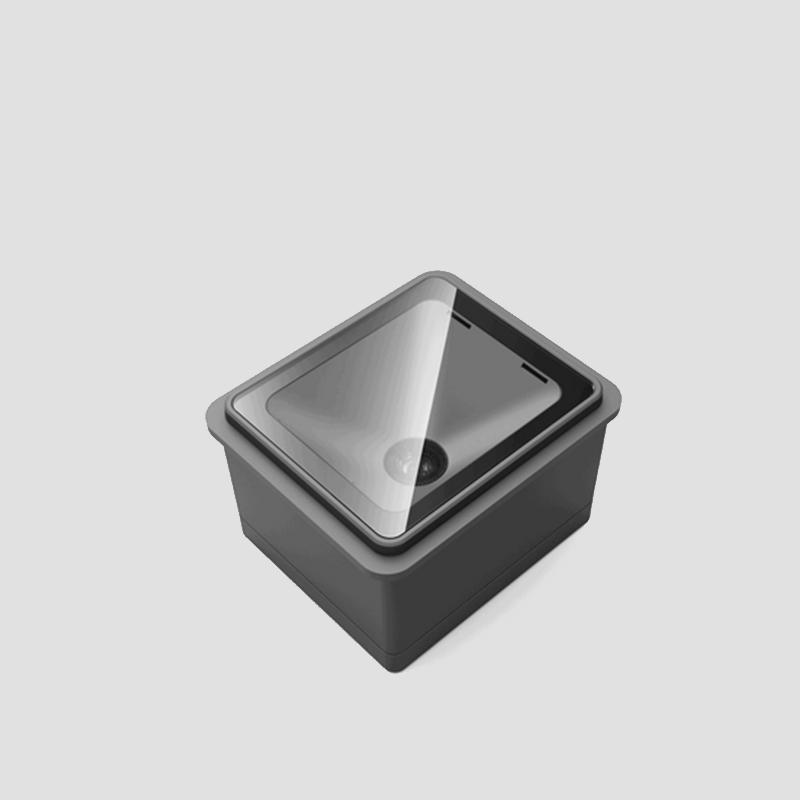

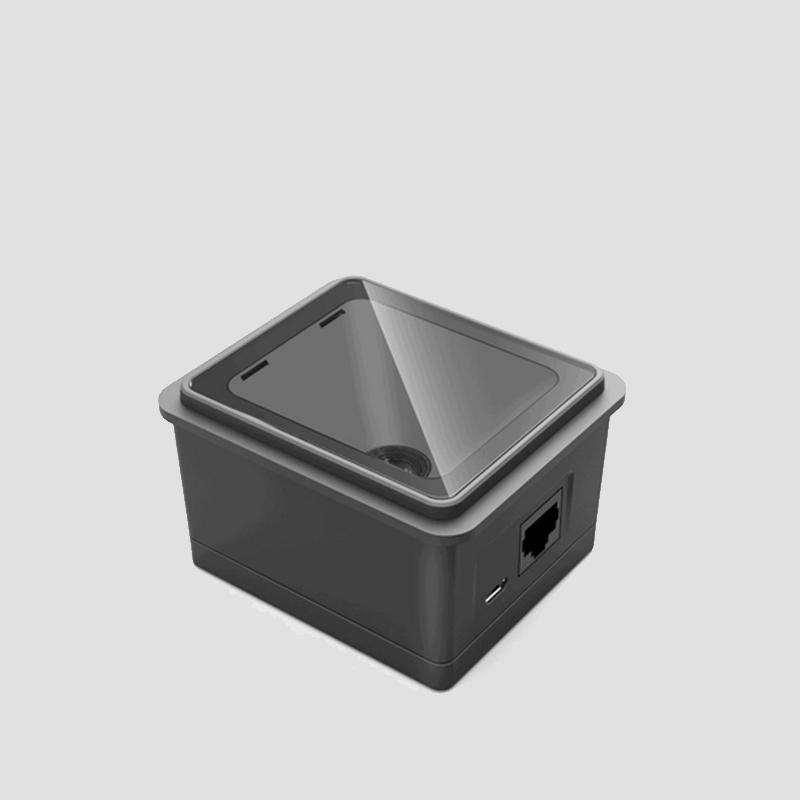

TQS870 is an embedded design 2d barcode reader for all kinds of kiosk, self-service and ticketing terminals, it is outstanding for its high speed motion tolerance (>2m/s) and capacity to decode almost all types of bar codes, including QR code, Aztec, MaxiCode, Data Matrix, PDF417, EAN code, etc.
It detects and reads bar code automatically, with USB-HID, USB-Virtual Com and RS232 interfaces.
This TQS870 performs excellent for bar code reading both from cell phone screen and paper, designed for embedded use, it is suitable for all kinds of Kiosk, ATM, ticket terminal, turnstile and medical devices, such as: Ticket vending machines; Access control gates & turnstiles; Transportation (ticketing of bus, metro…); Loyalty cards; Car park ticket machines.
We provide 3D-Drawing, Integration guide and User manual which support your easy and quick integration work with your terminals.
Contact our sales people to get the full documents.
To program/ setup the scanner module, you can just simply do it by setting codes from the User manual we provide.
We provide rich programming codes for you to do many kinds of settings / user-define.
Please ask our sales people for detailed documents.
|
Physical Characteristics |
|
|
Dimensions: |
77mm* 66mm* 45mm |
|
Weight: |
75g |
|
Voltage: |
5 VDC±10% |
|
Current: |
Typical:200mA MAX:450mA |
|
Performance Characteristics |
|
|
Light Source: |
illumination: 6500K LED |
|
Field of View: |
72° (H) x 64° (V) |
|
Roll / Pitch / Yaw: |
360°, ±65°, ±60° |
|
Print Contrast: |
20% minimum reflective difference |
|
Symbology Decode Capability |
|
|
1-D: |
Code 128, EAN-13, EAN-8, Code39, Code93, Marix 2 of 5, Codabar, Interleaved 2 of 5, GSI dataBar, etc. |
|
2-D: |
QR Code, Aztec, PDF417, Micro PDF417, Data Matrix, etc |
|
Minimum Resolution |
5 mil Code39 |
|
Interfaces Supported: |
USB, 232 |
|
20mil QR Code 13mil UPCA 10mil Data Matrix 6.88mil PDF417 |
0mm-100mm 5mm-110mm 0mm-50mm 0mm-50mm |
|
User Environment |
|
|
Operating Temperature: |
-40°C to 70°C |
|
Storage Temperature: |
-50°C to 85°C |
|
Humidity: |
0% to 95%, non-condensing |
|
Drop/Shock Specifications: |
Withstands 1.2m drops |
|
Ambient Light Immunity: |
0 to 100,000 lux |
